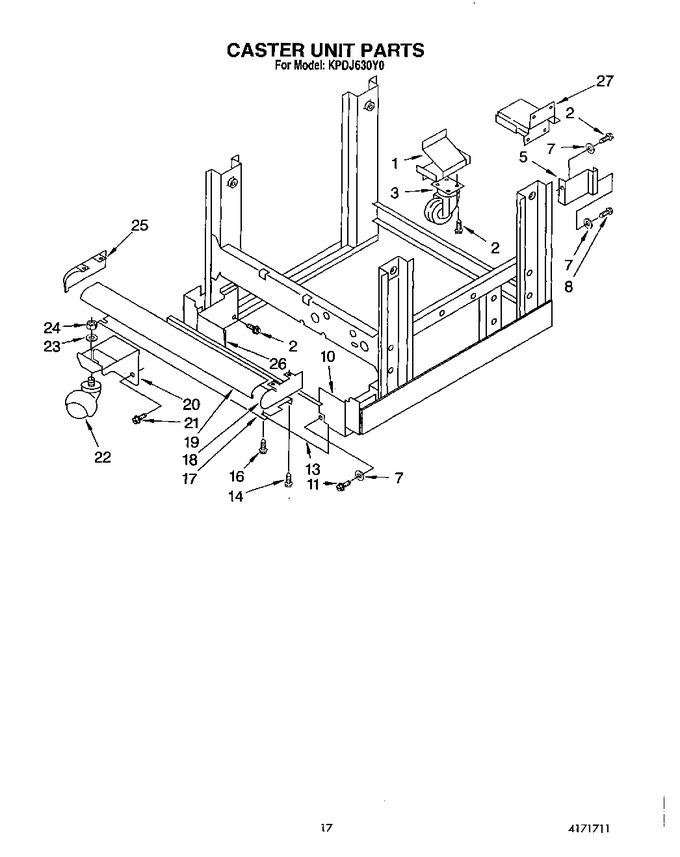

14 - Caster Unit


15 - Top And Panel


16 - Fill Hose And Cord


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162973		Bracket, Rear Caster (l.h.)		Appelez-nous	-
2	9740980		Screw, 10-16 X 1/2		Appelez-nous	-
3	4160607		Caster, Rear (2)		Appelez-nous	-
5	4161676		Bracket, Side Panel Mounting (2)		Appelez-nous	-
7	4159494		Lock Washer		Appelez-nous	-
8	4171147		Screw, 10-16 X 5/16		Appelez-nous	-
10	4162971		Support, Front Caster Bracket (r.h.)		Appelez-nous	-
11	4159421		Screw, 10-16 X 3/8		Appelez-nous	-
13	4162968		Kickboard		Appelez-nous	-
14	4159411		Screw, 10-16 X 3/8		Appelez-nous	-
16	4169384		Screw, 6-20 X 3/8		Appelez-nous	-
17	4162967		Barrier, Front Panel		Appelez-nous	-
18	9741177		End Cap, Caster Trim (r.h.)		Appelez-nous	-
19	4161942		Trim, Front Caster		Appelez-nous	-
20	4161753		Bracket, Front Caster (2)		Appelez-nous	-
21	4159393		Screw, 10-16 X 1/2 (8)		Appelez-nous	-
22	4161735		Caster, Front (2)		Appelez-nous	-
23	4159486		Lockwasher (2)		Appelez-nous	-
24	4171591		Jam Nut (2)		Appelez-nous	-
25	9741176		End Cap, Caster Trim (l.h.)		Appelez-nous	-
26	4162970		Support, Front Caster Bracket (l.h.)		Appelez-nous	-
27	4163575		Bracket, Rear Caster (r.h.)		Appelez-nous	-
