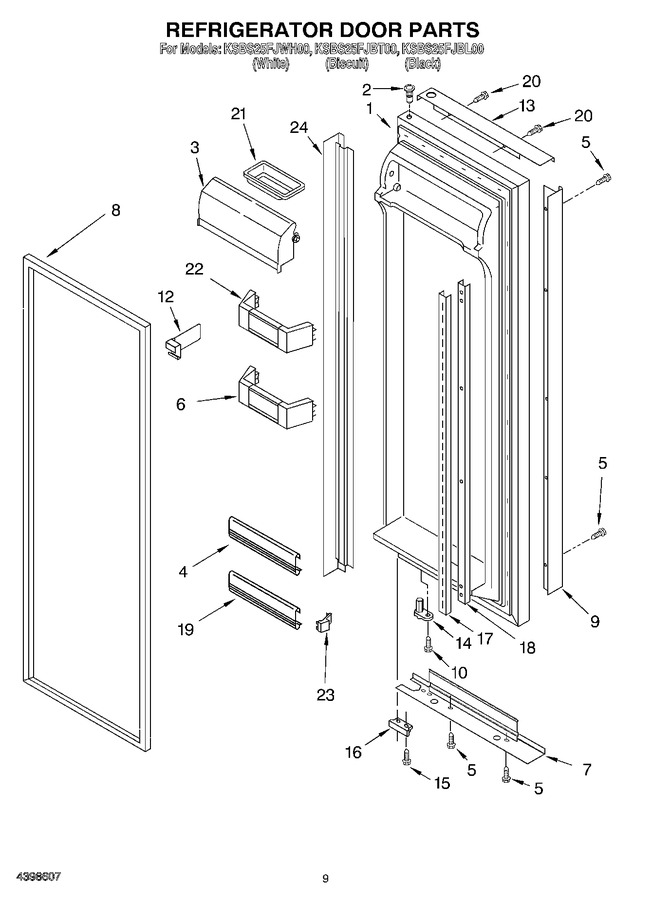

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2199766T		Refrigerator Door (includes Item No.8) (biscuit)		Appelez-nous	-
1	2199766B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
1	2199766W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
3	2182399		Door, Compartment		Appelez-nous	-
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	2199986		Bin, Door		Appelez-nous	-
7	2208114B		Trim, Door (bottom) (black)		Appelez-nous	-
7	2208114T		Trim, Door (bottom) (biscuit)		Appelez-nous	-
7	2208114W		Trim, Door (bottom) (white)		Appelez-nous	-
8	2209561		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2209563		Door Gasket, Magnetic (black)		Appelez-nous	-
9	2208124B		Handle (black)		Appelez-nous	-
9	2208124W		Handle (white)		Appelez-nous	-
9	2208124T		Handle (biscuit)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
12	2195497		Divider, Bin		Appelez-nous	-
13	2208129T		Trim, Door (top) (biscuit)		Appelez-nous	-
13	2208129B		Trim, Door (top) (black)		Appelez-nous	-
13	2208129W		Trim, Door (top) (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	3196180		Screw		Appelez-nous	-
21	2165792		Tray, Butter		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 11.30
24	2208127B		Trim, Door (hinge Side) (black)		Appelez-nous	-
24	2208127W		Trim, Door (hinge Side) (white)		Appelez-nous	-
24	2208127T		Trim, Door (hinge Side) (biscuit)		Appelez-nous	-
