SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts

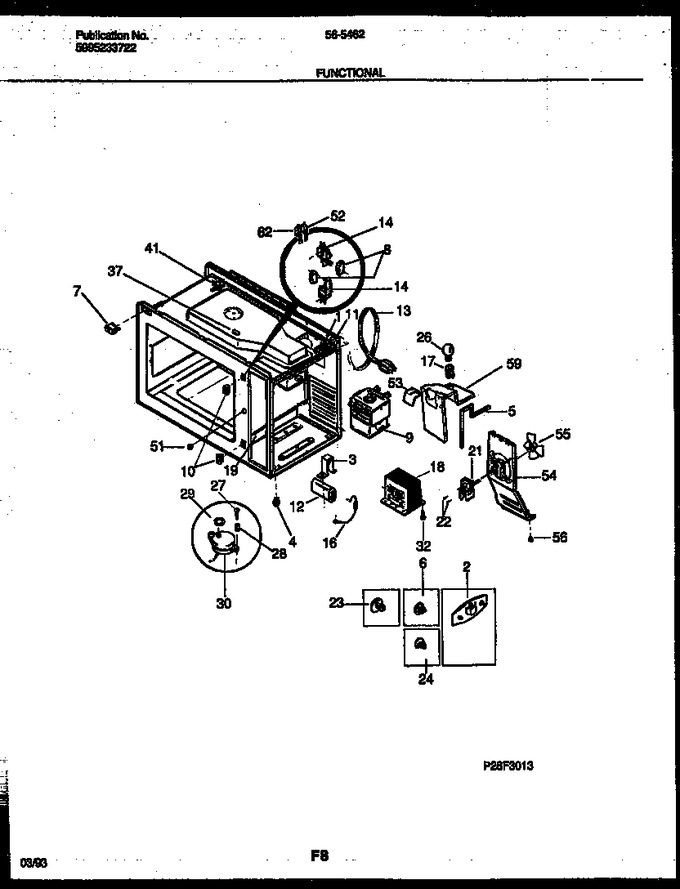

04 - Functional Parts


05 - Wrapper And Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303011670		Fuse, 20 Amp, 250 V		Appelez-nous	-
2	5303013626		Plug-button, Browner, (2)		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303295314		Spacer, Foot, (4)		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303286175		Magnetron, 1000 W		Appelez-nous	-
10	5303212767		Bezel Latch (2)		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303269608		Capacitor		Appelez-nous	-
13	317005403		Cord, Electric Power, 1000 W, 120 V		Appelez-nous	-
14	317000702		Bracket-switch, (2)		Appelez-nous	-
16	5303269837		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket-light/lamp, Oven, 120 V		Appelez-nous	-
18	5303279131		Transformer, Domestic, 1000 W		Appelez-nous	-
19	5303273954		Seal-foam, Cut To Size		Appelez-nous	-
21	5303922053		Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I		Appelez-nous	-
22	5308014502		Screw, 6, 32 X 1, 1/8, Fan Motor, (2)		Appelez-nous	-
23	5308037664		Plug-button, White, Rack, (8)		Appelez-nous	-
24	5308037665		Plug, Button, White, Tray, (2)		Appelez-nous	-
26	5303212801		Lamp, 40 W, 120 V				$ 53.13
27	317009501		Screw-turntable Mtr, 6-32 X 3/4, (2)		Appelez-nous	-
28	5303203151		Spacer-turntable Mtr, (2)		Appelez-nous	-
29	5303203152		Washer, Turntable Motor, Place Between, Mtr & Oven Btm		Appelez-nous	-
30	317005501		Motor-turntable, 120 V		Appelez-nous	-
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2)		Appelez-nous	-
37	5308037724		Spacer		Appelez-nous	-
41	5303283522		Switch, Thermal Cutout		Appelez-nous	-
51	5308037644		Grommet-door		Appelez-nous	-
52	317005104		Switch-door Sensor		Appelez-nous	-
53	5303269832		Duct-air		Appelez-nous	-
54	5303269833		Duct-air, Fan		Appelez-nous	-
55	5303269834		Fan Blade		Appelez-nous	-
56	5303269846		Rivet, Plastic, Fan Air Duct, (2)		Appelez-nous	-
59	5303286094		Duct-magnetron		Appelez-nous	-
62	317005103		Switch-monitor, Snap		Appelez-nous	-
*83208	317000403		Harness-wiring, Main		Appelez-nous	-
22A	5303013273		Nut, Hex, 6-32 (non-illustrated)		Appelez-nous	-
30A	5303292336		Spacer-turntable Mtr, Place Between, Mtr & Oven Btm (non-illustrated)		Appelez-nous	-
30B	317003203		Harness-wiring, 1.3 (relay) C/r, Turntable (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
