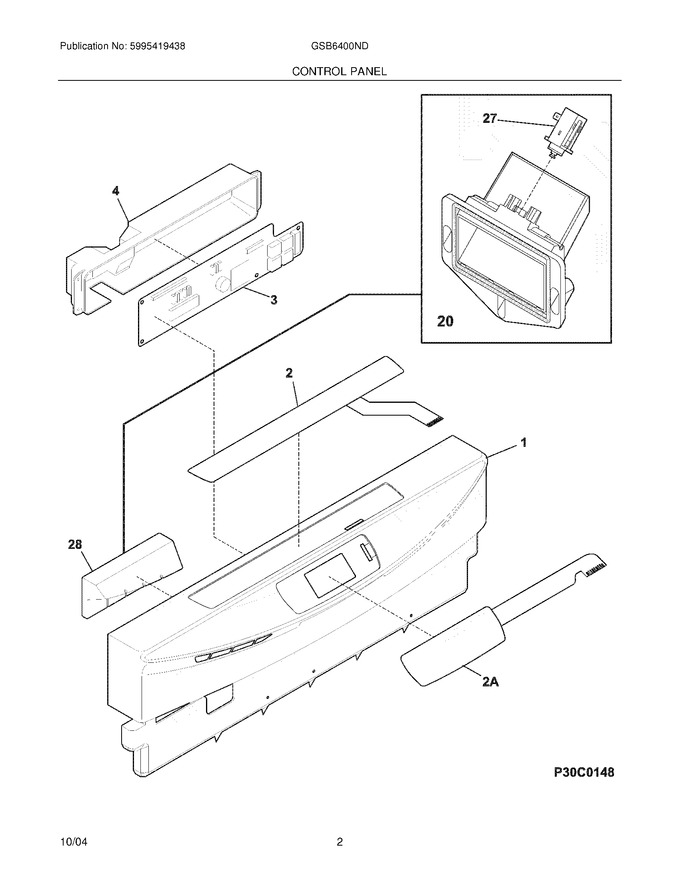

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154468703		Panel,control ,black				$ 134.45
2	154489203		Switch Assembly,overlay ,black ,top				$ 213.99
4	154460601		Cover,control		Appelez-nous	-
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154478501		Adapter,vent				$ 23.75
2A	154490203		Switch Assembly,overlay ,black ,front		Appelez-nous	-
F3	154488901		Control,electronic		Appelez-nous	-
NI	154494102		Energy Guide Label		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154478901		Gasket,cover				$ 61.66
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154496001		Harness,wiring ,main				$ 177.71
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
