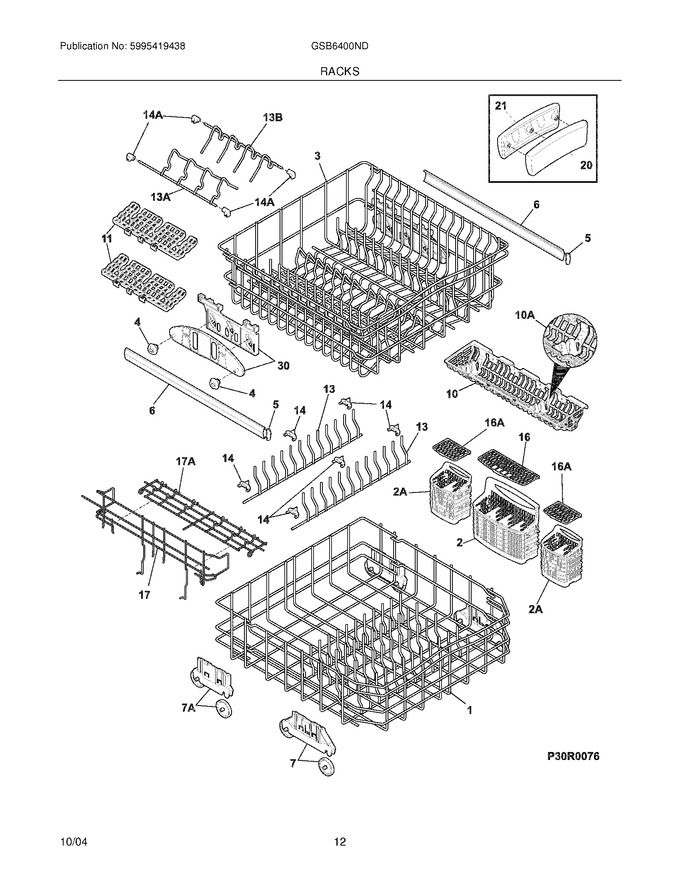

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140222632022 | Rack Assy,lower (Replaces: 154462701) |
|
Immediately | $ 134.18 | ||||
| 2 | 5304535382 | Basket,silverware ,grey ,main (Replaces: 154424002) |
|
Immediately | $ 25.43 | ||||
| 3 | 5304535250 | Rack Assy,upper (Replaces: 154461101) |
|
$ 130.42 | |||||
| 4 | 154522902 | Wheel Assy.,upper Rack ,(4) (Replaces: 154494502) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap,slide ,(4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 9.36 | ||||
| 7 | 154584002 | Roller Assy,front ,(2) (Replaces: 154482002) |
|
$ 63.79 | |||||
| 10 | 154488802 | Tray,utility ,grey ,w/knife Holder |
|
$ 55.49 | |||||
| 11 | 154453002 | Cup Shelf,half ,dark Grey |
|
$ 39.95 | |||||
| 13 | 154481303 | Fence,fold Down ,grey ,lower Rack ,(2) |
|
- | |||||
| 14 | 154428402 | Bracket,fold Down Fence ,grey ,lower Rack,(6) |
|
Immediately | $ 25.05 | ||||
| 16 | 154424203 | Cover,main Basket ,grey ,silverware |
|
$ 50.51 | |||||
| 17 | 154439303 | Fence,cup Shelf ,grey ,vertical ,lower Rack |
|
- | |||||
| 20 | 154496102 | Handle,pull ,front ,upper Rack |
|
- | |||||
| 21 | 154496302 | Handle,pull ,rear ,upper Rack |
|
- | |||||
| 30 | A01986801 | Bracket,adjustment ,lh ,upper Rack ,assembly (Replaces: 154481402) |
|
Immediately | $ 188.39 | ||||
| 10A | 154452502 | ยท Holder,knife ,grey |
|
- | |||||
| 13A | 154740304 | Fence,multi,4 Wire ,lh ,upper Rack (Replaces: 154480403) |
|
Immediately | $ 32.61 | ||||
| 13B | 5304532950 | Fence,multi,4 Wire ,rh ,upper Rack (Replaces: 154480503) |
|
Immediately | $ 19.76 | ||||
| 14A | 5304506508 | Bracket,multi Fence ,white ,upper Rack ,(4) (Replaces: 154242002) |
|
Immediately | $ 5.79 | ||||
| 16A | 154424303 | Cover,side Basket ,grey ,(2) ,silverware |
|
$ 39.59 | |||||
| 17A | 154439403 | Fence,cup Shelf ,grey ,pivotal ,lower Rack |
|
- | |||||
| 2A | 5304535382 | Basket,silverware ,grey ,(2) ,side (Replaces: 154424102) |
|
Immediately | $ 25.43 | ||||
| 7A | 154482202 | Roller Assy,rear ,(2) |
|
$ 29.03 | |||||
| F14A | 154242102 | Bushing,multi Fence ,upper Rack ,(4) |
|
$ 3.41 | |||||
| NI | A01986801 | Bracket,adjustment ,rh ,upper Rack ,assembly (Replaces: 154481702) |
|
Immediately | $ 188.39 |
