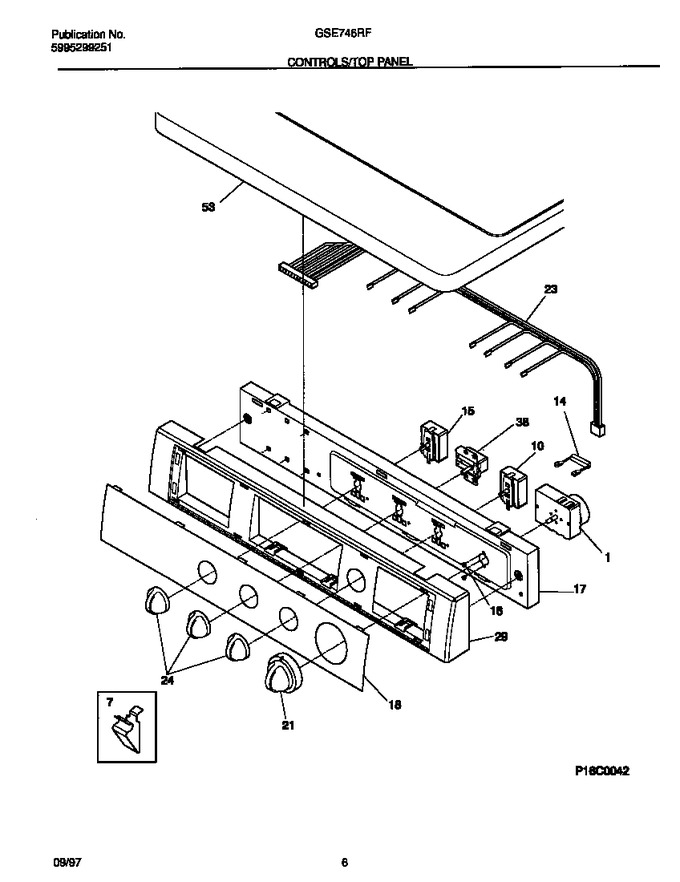

04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer   (Replaces: 131063200)			Immediately	$ 269.37
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131622501		Bracket-control		Appelez-nous	-
18	131630900		Panel-control		Appelez-nous	-
21	131264903		Knob-timer				$ 66.62
23	131636600		Harness-main		Appelez-nous	-
24	131265003		Knob-rotary		Appelez-nous	-
29	131601400		Frame-control Panel		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
53	131601308		Panel-top White		Appelez-nous	-
*57642	131636700		Harness-control		Appelez-nous	-
*57643	5303281103		Tie-harness		Appelez-nous	-
