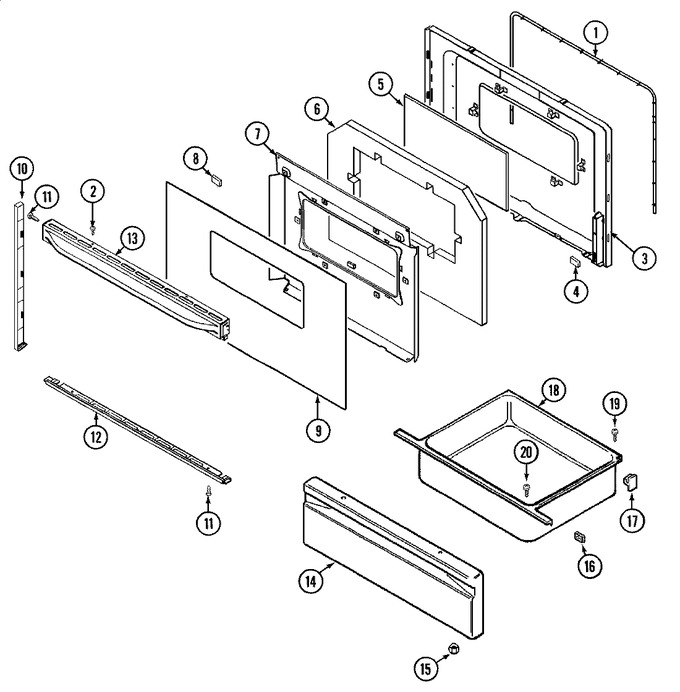

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	26		Immediately	$ 56.83
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	26			$ 15.94
3	2402W213-19		Lining, Door	26	Appelez-nous	-
4	8010P085-60		Spacer, Rubber	26	Appelez-nous	-
5	7902P319-60		Glass, Door (inner)----na	26	Appelez-nous	-
6	4804F035-60		Insulation	26	Appelez-nous	-
7	3601F240-80		Baffle, Door	26	Appelez-nous	-
8	8270P095-60		Tape, Double Sided	26	Appelez-nous	-
9	74003431		Glass, Door (outer-blk)	31	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	26	Appelez-nous	-
10	74003430		End Cap, Door (blk)	31			$ 59.35
10	7744P055-60		End Cap, Oven Door (blk)	26	Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P290-60)	26		Immediately	$ 12.62
12	74003432		Trim, Bottom (blk)	31	Appelez-nous	-
12	7744P105-60		Trim, Bottom (blk)----na	26	Appelez-nous	-
13	74003429		Handle, Door (blk)	31			$ 93.87
13	7701P144-60		Handle, Door (blk)	26	Appelez-nous	-
14	2416F039-64		Panel, Drawer (alm)	26	Appelez-nous	-
14	74003445		Panel, Drawer (alm)	30	Appelez-nous	-
15	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	26			$ 4.00
16	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	26			$ 11.95
17	8004P033-60		Support, Drawer	26	Appelez-nous	-
17	WP488130		Nut   (Replaces: 7103P082-60)	30			$ 6.27
17	74003566		Roller, Drawer	30	Appelez-nous	-
18	74003618		Drawer, Storage	30	Appelez-nous	-
18	3405F019-80		Drawer, Storage	26	Appelez-nous	-
19	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	26		Immediately	$ 6.98
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	26		Immediately	$ 12.62
