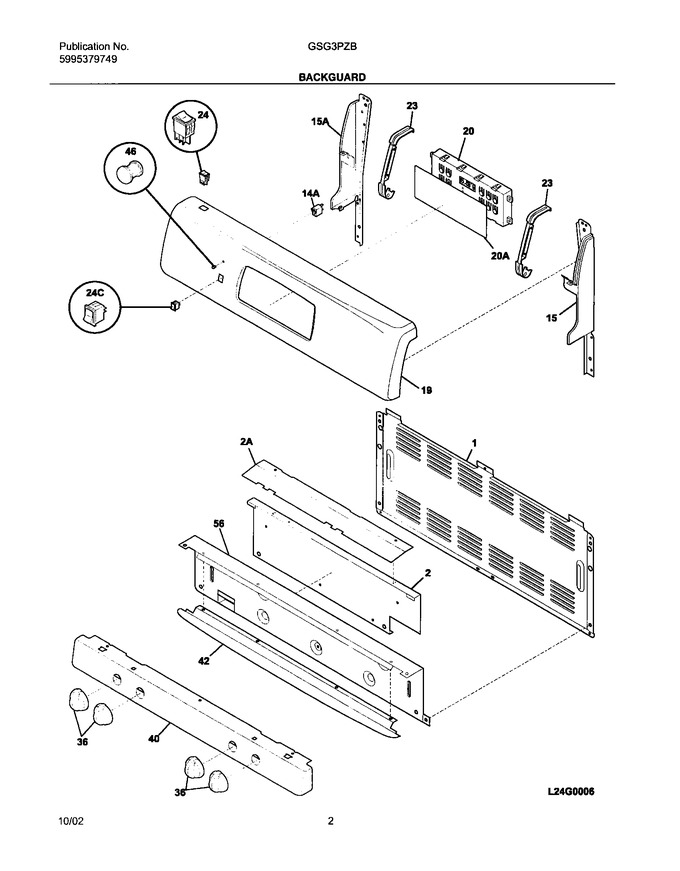

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
19	316232687		Panel-backguard,white		Appelez-nous	-
23	316220900		Bracket,clock Mtg				$ 59.43
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316204917		Panel-manifold,white		Appelez-nous	-
42	316236601		Trim,extrusion ,chrome		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316220215		Support,backguard ,white ,lh				$ 86.05
20A	316220804		Overlay,clock ,white			Immediately	$ 42.53
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316207526		Clock/timer,electronic   (Replaces: 316207506)				$ 347.35
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
F24C	316259800		Switch-speed Bake,white   (Replaces: 316114000)				$ 36.21
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
