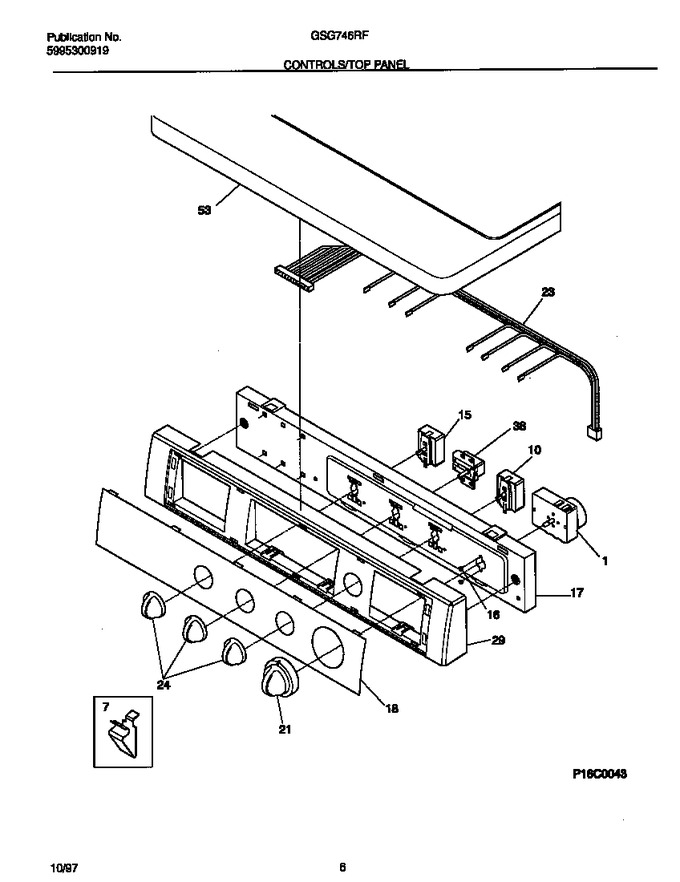

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131063300		Timer-dryer		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw   (Replaces: 5303283289)				$ 10.63
17	131622501		Bracket-control		Appelez-nous	-
18	131630900		Panel-control		Appelez-nous	-
21	131264903		Knob-timer				$ 66.62
23	131636900		Harness-main				$ 196.56
24	131265003		Knob-rotary		Appelez-nous	-
29	131601400		Frame-control Panel		Appelez-nous	-
38	131048300		Buzzer		Appelez-nous	-
*08761	131637000		Harness-control		Appelez-nous	-
*08762	5303281103		Tie-harness		Appelez-nous	-
