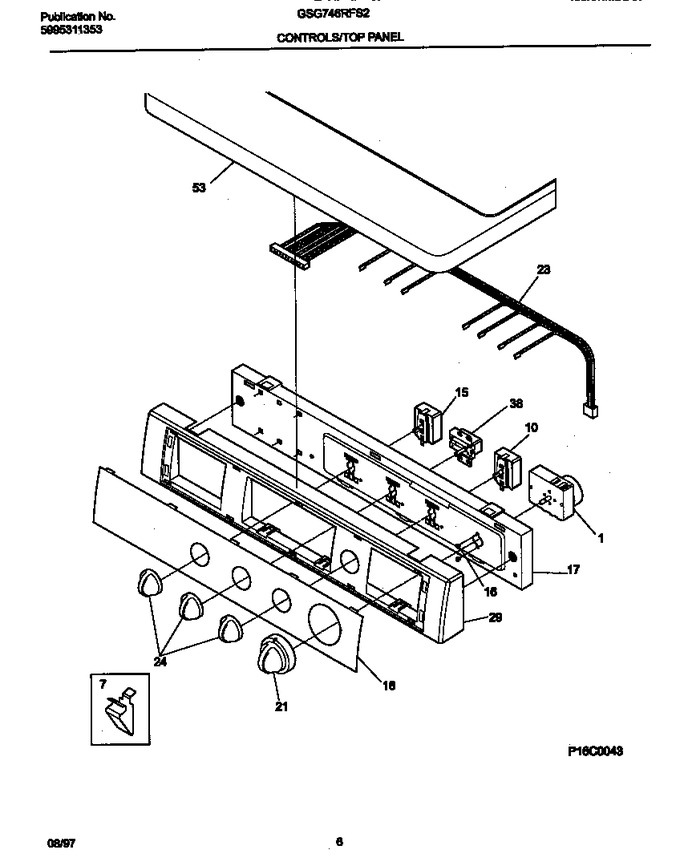

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131583801 | Timer-dryer P Gas |
|
$ 336.65 | |||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| 15 | 131048100 | Switch, Temperature |
|
- | |||||
| 16 | 218359202 | Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 131764500 | Brkt-cont Mtg-stack Dryer |
|
- | |||||
| 18 | 131743400 | Trimplate-gb/gce/b7prhn-b1 |
|
- | |||||
| 21 | 131264903 | Knob-timer |
|
$ 66.62 | |||||
| 23 | 131636900 | Harness-main |
|
$ 196.56 | |||||
| 24 | 131965300 | Knob-rotary (Replaces: 131666606) |
|
Immediately | $ 53.15 | ||||
| 29 | 131689700 | Console Frame-dryer-white |
|
- | |||||
| 38 | 131048300 | Buzzer |
|
- | |||||
| 53 | 131601308 | Panel-top White |
|
- | |||||
| *00641 | 131703500 | Harness-stack Dryer P Gas |
|
- |
