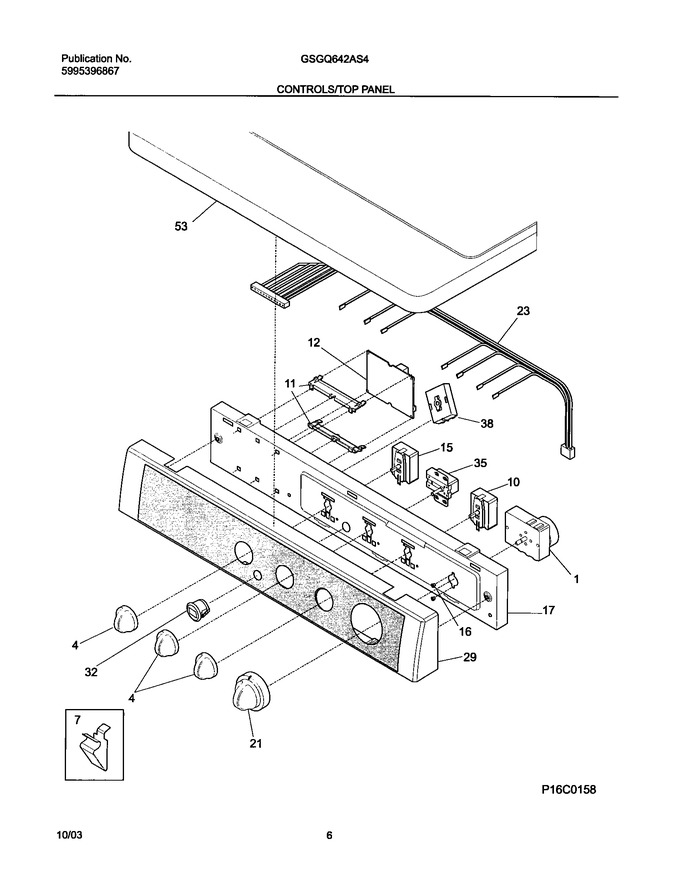

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131930600		Timer				$ 320.98
4	134042800		Knob,rotary ,white			Immediately	$ 50.61
7	3205821		Clip,top-to-front			Immediately	$ 35.44
11	131587400		Bracket,pc Board Mtg. ,(2)				$ 44.40
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134064501		Bracket,control Mtg.				$ 76.13
21	131873500		Knob,timer ,white/gray   (Replaces: 134042600)			Immediately	$ 49.62
29	131666949		Console,frame ,w/trim & Tape		Appelez-nous	-
53	134086812		Panel,dryer Top ,white ,stackable				$ 336.42
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F12	134216300		Control Board,moisture Sensor				$ 67.62
F15	131641900		Switch,temperature ,4 Posn Rotary		Appelez-nous	-
F23	134064700		Wiring Harness,controls		Appelez-nous	-
F32	134040800		Switch,on/off ,white ,round				$ 65.92
F35	131243200		Switch,temp/buz/xrinse ,2 Position		Appelez-nous	-
F38	131959200		Beeper Continuous Low Tone				$ 134.82
NI	134006600		Wiring Harness,main				$ 277.78
