SELECT A DIAGRAM

01 - Cover


03 - Dry Cab,heater

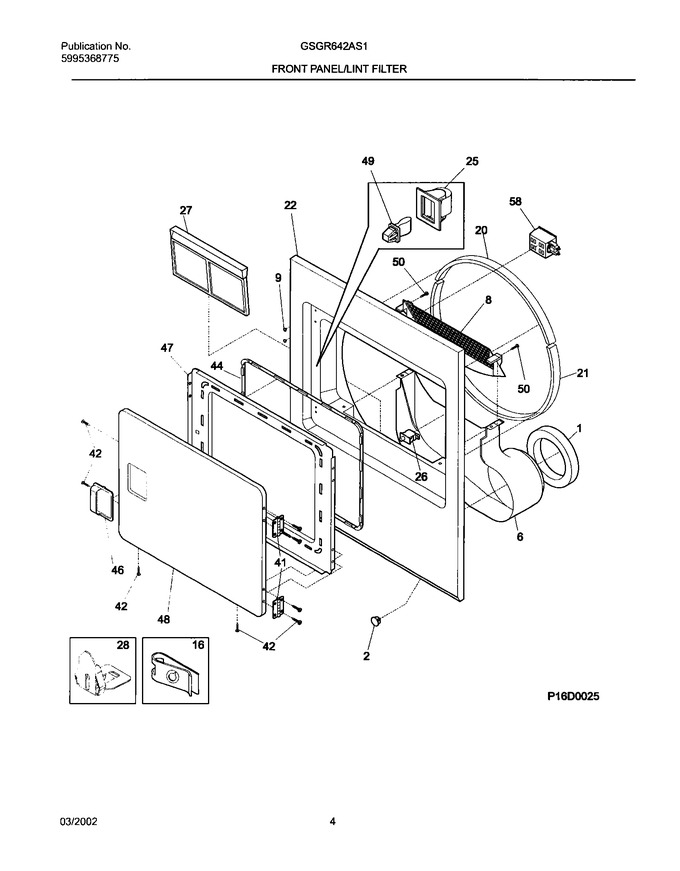

05 - Frnt Pnl,door


07 - Control Panel


09 - Motor,blower


11 - Burner,valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct 2.5no. Low Perm   (Replaces: 134063300)			Immediately	$ 9.22
2	131397000		Plug-dome-white				$ 14.12
6	131621900		Duct-air		Appelez-nous	-
8	131845800		Sensor-moisture,assy W/harness				$ 255.57
9	131633200		Plug,white				$ 15.90
16	131063700		Clip-wiring				$ 18.11
20	5303937182		Felt-upper   (Replaces: 134036400)			Immediately	$ 26.89
21	5303937183		Lower Felt   (Replaces: 134134700)			Immediately	$ 35.87
22	131845912		Front Panel W/lite Wht		Appelez-nous	-
25	131658800		Catch-door			Immediately	$ 68.38
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131644700		Handle-door, White			Immediately	$ 59.54
47	131844104		Panel-inner Door White				$ 224.12
48	131789303		Door-outer, White				$ 168.47
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
F26	134813601		Switch-door W/drum Light   (Replaces: 131843101)			Immediately	$ 33.09
F58	131843500		Asmy-lamp				$ 73.00
NI	131474700		Insulation				$ 33.67
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NI	131846600		Harness-ms/lt Hsg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
