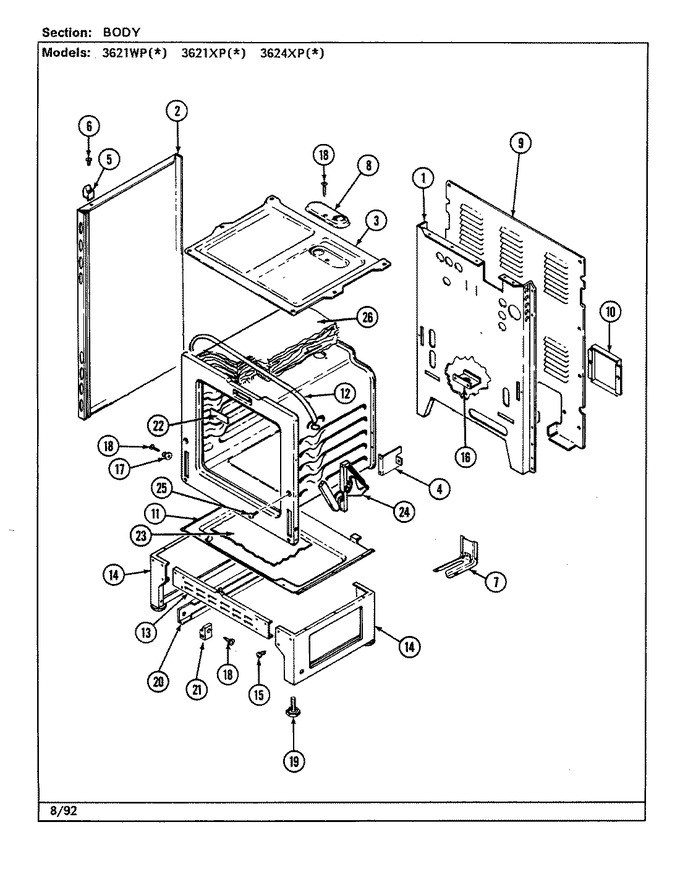

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F186-80		Back, Main	01	Appelez-nous	-
2	2618F085-74		Panel, Side (alm)	01	Appelez-nous	-
3	4011F208-19		Box, Burner	01	Appelez-nous	-
4	3807F400-51		Support,oven Rear	01	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	01	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	01	Appelez-nous	-
6	WP74004005		Screw   (Replaces: 7118P013-60)	01			$ 6.95
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	01		Immediately	$ 4.69
7	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	01			$ 26.33
8	4005F350-45		Cover Vent	01	Appelez-nous	-
9	4005F348-51		Cover, Main Back Wire	01	Appelez-nous	-
10	4005F376-51		Cover, Terminal Block Acces	01	Appelez-nous	-
11	3804F109-51		Retainer, Bottom Insulation	01	Appelez-nous	-
12	4820F001-59		Strap, Retainer	01	Appelez-nous	-
14	4020W007-80		Pedestal, Side	03	Appelez-nous	-
14	4020F002-80		Pedestal, Side	01-02	Appelez-nous	-
15	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
16	3605F174-51		Plate, Conduit Tubing	01	Appelez-nous	-
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	01			$ 7.07
18	W11772394		Screw   (Replaces: 7101P300-60)	01		Immediately	$ 10.94
19	7101P306-60		Leg, Leveling	01	Appelez-nous	-
20	3406F028-51		Runner, Drawer	01	Appelez-nous	-
21	8004P025-60		Support, Drawer	01	Appelez-nous	-
22	8114P336-60		Cover Lock Slot	01	Appelez-nous	-
23	8312P058-60		Foil, Insulation Retainer	01	Appelez-nous	-
25	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	01			$ 4.29
26	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	01		Immediately	$ 31.65
26	4804F018-60		Insulation, Wrap	01	Appelez-nous	-
26	4804F017-60		Insulation, Back	01	Appelez-nous	-
