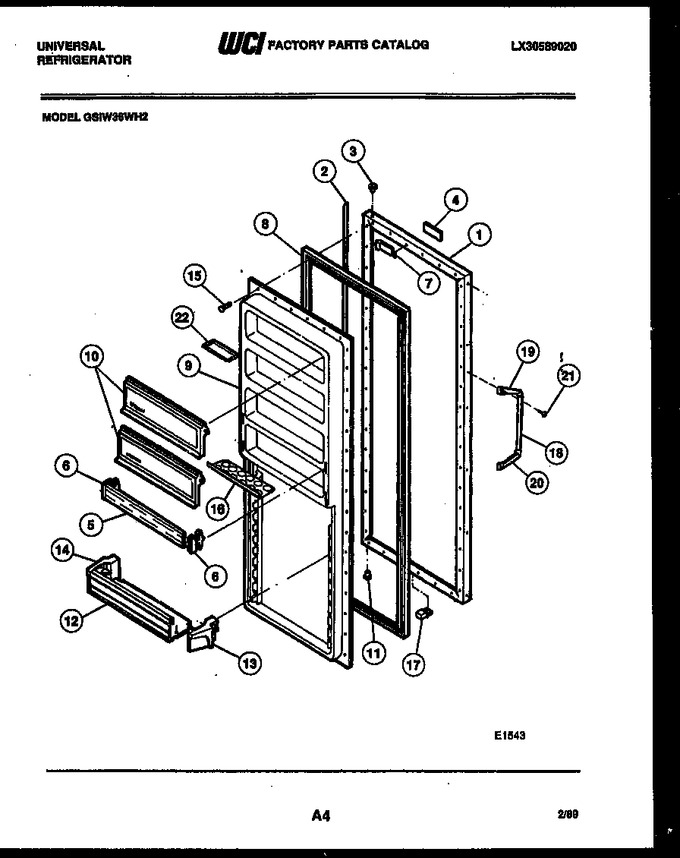

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G183031-10		Refr Door-coffee		Appelez-nous	-
2	G167514-12		Molding-door		Appelez-nous	-
3	G183139		Bearing-hinge, Upper		Appelez-nous	-
4	3001025		Frame-nameplate		Appelez-nous	-
5	G172868-30		Rack-door (2)		Appelez-nous	-
6	3017379		Support Ls (2)		Appelez-nous	-
7	3200272		Door Closer		Appelez-nous	-
8	G180551-02		Gasket-refr Door		Appelez-nous	-
9	G179555-01		Panel-inner Door		Appelez-nous	-
10	G173014-07		Dairy Door (2)		Appelez-nous	-
11	G183138		Bearing, Hinge, Lower		Appelez-nous	-
12	3001011		Shelf-door (3)		Appelez-nous	-
13	G163064-04		Support Rs (5)		Appelez-nous	-
14	G163065-04		Support Ls (5)		Appelez-nous	-
15	G162585		Screw		Appelez-nous	-
16	3001023		Egg Container		Appelez-nous	-
17	G165376		Bumper - Light Switch		Appelez-nous	-
18	3001013		Handle Grip		Appelez-nous	-
19	G175809		Handle-end Top		Appelez-nous	-
20	G175810		Handle-end Bottom		Appelez-nous	-
21	G185566		Screw		Appelez-nous	-
22	3001090		Butter Dish		Appelez-nous	-
12A	G101890		Rivet		Appelez-nous	-
12B	G167115		Screw-shelf (10) (non-illustrated)		Appelez-nous	-
17A	G162585		Screw		Appelez-nous	-
1A	G152308-01		Door Plug-bottom (non-illustrated)		Appelez-nous	-
6A	3017376		Support Rs (2)		Appelez-nous	-
7A	G169729		Screw-closer Mtg (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
