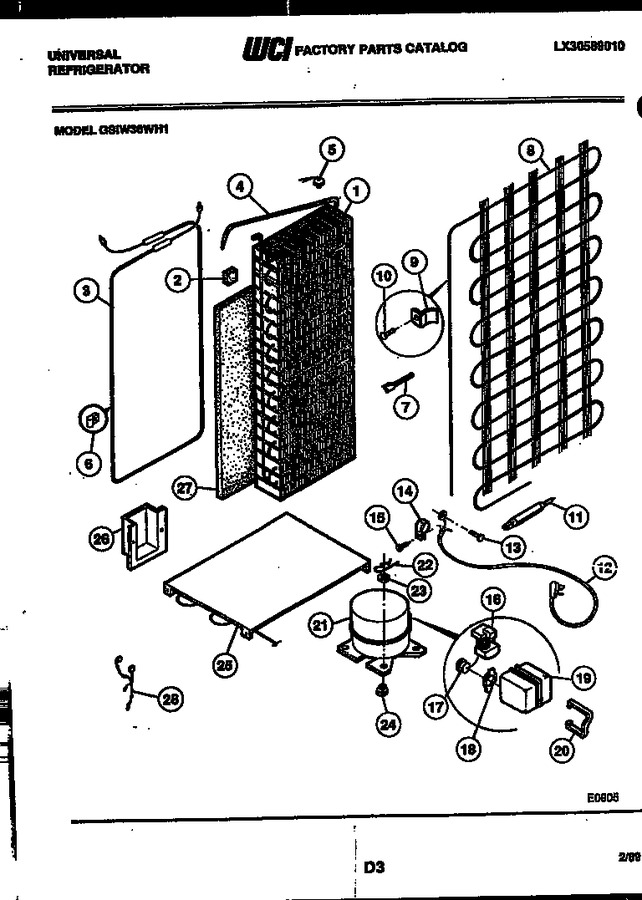

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017362 | Evaporator |
|
- | |||||
| 2 | G169493 | Coil Block (4) |
|
- | |||||
| 3 | 3007568 | Heater-defrost |
|
- | |||||
| 4 | G189609 | Heat-exchanger |
|
- | |||||
| 5 | 3007540 | Thermostat-defrost |
|
- | |||||
| 6 | G167363 | Support, Heater |
|
- | |||||
| 7 | G165546 | Strap, Evaporator |
|
- | |||||
| 8 | G188643 | Condenser |
|
- | |||||
| 9 | G169666-01 | Bracket, Cond. Mtg (4) |
|
- | |||||
| 10 | G160578 | Screw |
|
- | |||||
| 11 | G186717 | Drier |
|
- | |||||
| 12 | 3001200 | Service Cord |
|
- | |||||
| 13 | G187009 | Screw-ground |
|
- | |||||
| 14 | G27669 | Clamp-cord (3) |
|
- | |||||
| 15 | G187009 | Screw |
|
- | |||||
| 16 | G182225-05 | Relay |
|
- | |||||
| 17 | G188608 | Overload |
|
- | |||||
| 18 | 3007535 | Clip-overload |
|
- | |||||
| 19 | 3001345 | Cover, Terminal |
|
- | |||||
| 20 | G166057 | Strap-terminal Cover |
|
- | |||||
| 21 | 08950191 | Compressor With Electricals |
|
- | |||||
| 22 | G163204 | Clip-compressor (4) |
|
- | |||||
| 23 | G164634 | Washer-compr (4) |
|
- | |||||
| 24 | G169284 | Grommet-compr (4) |
|
- | |||||
| 25 | G171123 | Bracket-defrost Pan Mounting |
|
- | |||||
| 25 | G188555 | Defrost-plate |
|
- | |||||
| 25 | G171111 | Bracket-plate (4) |
|
- | |||||
| 25 | G144049 | Screw |
|
- | |||||
| 26 | G183584 | Cover, Wiring |
|
- | |||||
| 27 | G169641 | Insulator-evaporator |
|
- | |||||
| 28 | 3001229 | Wiring Harness-compressor And Lights |
|
- | |||||
| *44364 | G189378 | Hot Tube Repair Kit |
|
- |
