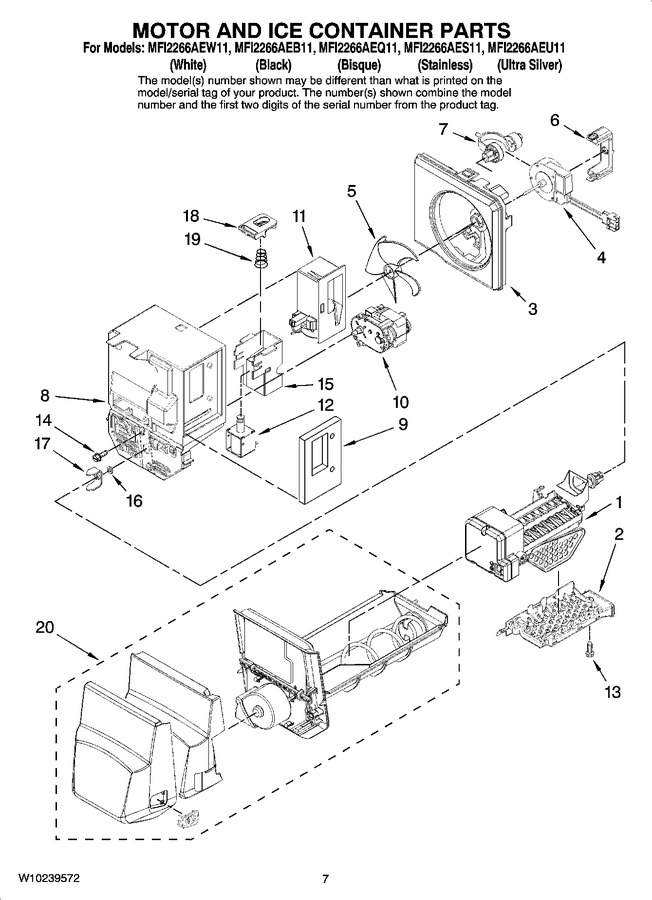

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Icemaker (includes Fill Tube Cup, Wire Harness & Sensor Arm |
|
Immediately | $ 148.87 | ||||
| 2 | WPW10121269 | Impinger Assembly (Replaces: W10121269) |
|
$ 90.33 | |||||
| 3 | W11700329 | Shroud, Ice Box Fan (Replaces: 67006424) |
|
Immediately | $ 55.08 | ||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 320.09 | |||||
| 5 | WP67006337 | Blade, Fan (Replaces: 67006337) |
|
Immediately | $ 95.05 | ||||
| 6 | W10165970 | Clip, Fan Motor |
|
$ 80.25 | |||||
| 7 | W11676465 | Grommet, Fan Motor (Replaces: 67006339) |
|
Immediately | $ 14.00 | ||||
| 8 | 12958408 | Divider, Ice Box |
|
$ 117.61 | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 67006341) |
|
$ 7.52 | |||||
| 10 | W11671282 | Motor, Auger (Replaces: 12955405) |
|
Immediately | $ 158.53 | ||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 233.06 | ||||
| 12 | 67006344 | Solenoid |
|
$ 180.48 | |||||
| 13 | 67007110 | Screw, Impinger |
|
- | |||||
| 14 | 67006425 | Screw (3) |
|
Immediately | $ 6.57 | ||||
| 15 | 67007111 | Bracket, Solenoid |
|
$ 20.00 | |||||
| 16 | 67006346 | Washer |
|
$ 14.37 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 65.12 | ||||
| 18 | 67006347 | Yoke, Solenoid |
|
$ 9.95 | |||||
| 19 | 67006348 | Spring, Solenoid |
|
$ 12.10 | |||||
| 20 | WPW10324089 | Ice Bin Assembly (includes Auger) (Replaces: W10165971) |
|
Immediately | $ 322.44 |
