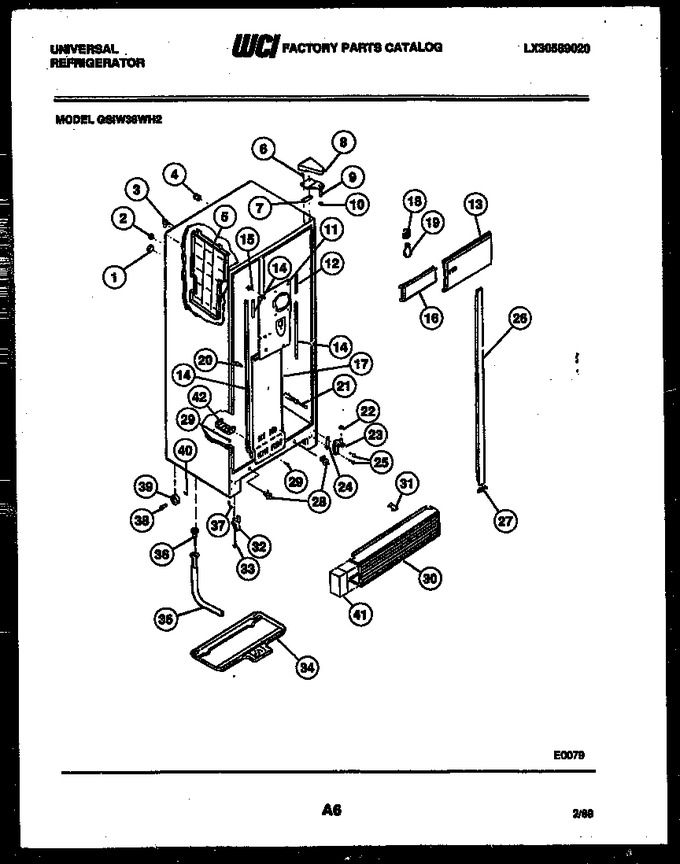

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G174733		Ferrule - Inner (2)		Appelez-nous	-
2	G174734		Ferrule-outer (2)		Appelez-nous	-
3	G163307		Tube-filler To Ice Maker		Appelez-nous	-
4	G85642		Tube-rubber (4)		Appelez-nous	-
5	G174559		Divider, Ice And Water		Appelez-nous	-
6	G167103		Screw-hinge Mtg (4)		Appelez-nous	-
7	G183861		Shim-top Hinge (2)		Appelez-nous	-
8	G183558-01		Hinge Cover-white		Appelez-nous	-
8	G183558-08		Hinge Cover-avocado		Appelez-nous	-
8	G183558-10		Hinge Cover Coffee		Appelez-nous	-
8	G183558-09		Hinge Cover-wheat		Appelez-nous	-
8	G183558-11		Hinge Cover-almond		Appelez-nous	-
9	G183715		Hinge-top Rs		Appelez-nous	-
10	G170156		Washer-hinge (2)		Appelez-nous	-
11	G174738		Coil Cover-upper		Appelez-nous	-
12	G165233		Gasket-coil Cvr (2)		Appelez-nous	-
13	3203855		Light Shield-refr		Appelez-nous	-
14	G188853		Gasket Kit-cover		Appelez-nous	-
15	G163669		Support-coil Cover		Appelez-nous	-
16	3001177		Light Shield-freezer		Appelez-nous	-
17	G169477-03		Coil Cover-lower		Appelez-nous	-
18	G168510		Light Socket-freezer		Appelez-nous	-
19	G168318		Light Bulb-freezer		Appelez-nous	-
20	G169741		Support-coil Cover (4)		Appelez-nous	-
21	3001095		Damper, Meat Keeper		Appelez-nous	-
22	G164355		Washer-hinge (2)		Appelez-nous	-
23	G162383		Hinge-bottom Rs		Appelez-nous	-
24	G162903		Shim-bottom Hng (3)		Appelez-nous	-
25	G99167		Screw-hinge Mtg (2)		Appelez-nous	-
26	G164643-09		Mullion, Wheat		Appelez-nous	-
26	G164643		Mullion, White		Appelez-nous	-
26	G164643-08		Mullion, Avocado		Appelez-nous	-
26	G164643-10		Mullion, Coffee		Appelez-nous	-
26	G164643-11		Mullion, Almond		Appelez-nous	-
27	G169745-11		Mullion Trim-almond		Appelez-nous	-
27	G169745-08		Mullion Trim-avocado		Appelez-nous	-
27	G169745-09		Mullion Trim-wheat		Appelez-nous	-
27	G169745-10		Mullion Trim-coffee		Appelez-nous	-
27	G169745-01		Mullion Trim-white		Appelez-nous	-
28	G149762		Light Switch (2)		Appelez-nous	-
29	G137363		Screw Mtg (2)		Appelez-nous	-
30	3001032		Grille		Appelez-nous	-
31	G170328		Clip, Grille		Appelez-nous	-
32	G186731		Roller-front (2)		Appelez-nous	-
33	G187491		Screw-roller Mtg (2)		Appelez-nous	-
34	G171125		Defrost Pan		Appelez-nous	-
35	08002767		Drain Outlet And Tube		Appelez-nous	-
36	G171193		Heat Conductor		Appelez-nous	-
37	G177743		Elbow, Water Tube		Appelez-nous	-
38	G162809		Pin Roller (2)		Appelez-nous	-
39	G162808		Roller Rear (2)		Appelez-nous	-
40	G162662		Push Nut (2)		Appelez-nous	-
41	G174658-01		Cover-bottom Hinge		Appelez-nous	-
42	G158022		Bracket, Cover Mtg		Appelez-nous	-
*20612	G162892-01		Plug-refr Liner (2)		Appelez-nous	-
*20612	G184851		Screw-bracket		Appelez-nous	-
*20612	G164820		Lock Washer (2)		Appelez-nous	-
21A	G187363		Screw		Appelez-nous	-
23A	G175068		Hinge-bottom Ls (non-illustrated)		Appelez-nous	-
23B	G141673		Nut		Appelez-nous	-
24A	G142361		Pin		Appelez-nous	-
24B	G77210		Speed Nut (2) (non-illustrated)		Appelez-nous	-
26A	G169297		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
26A	G169100		Clip-mullion (3) (non-illustrated)		Appelez-nous	-
37A	G143689		Nut-elbow (non-illustrated)		Appelez-nous	-
9A	G183716		Hinge-top Ls (non-illustrated)		Appelez-nous	-
