SELECT A DIAGRAM

01 - Cover


03 - Control Panel

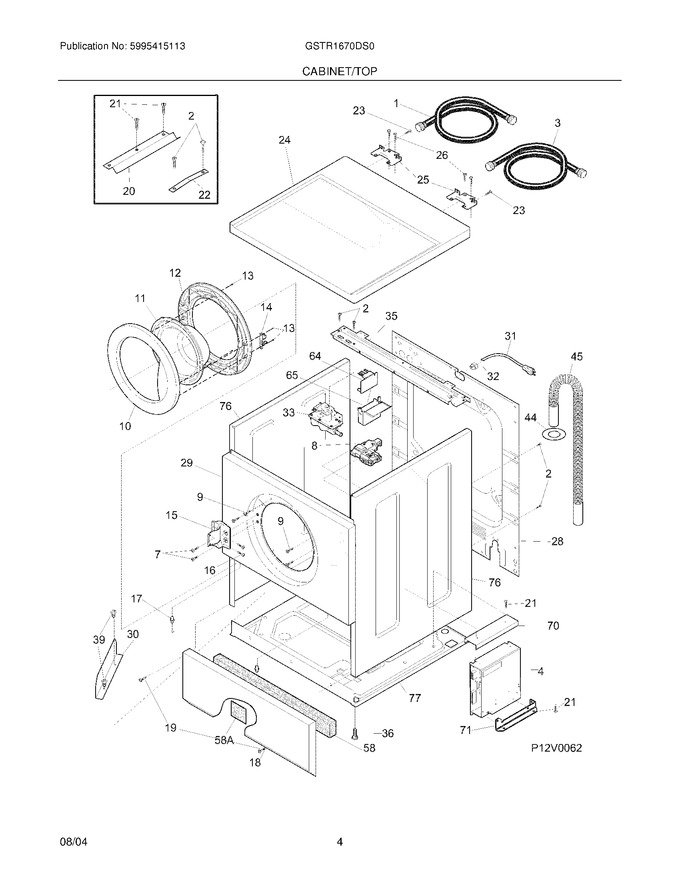

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131279602		Hose,water Inlet ,cold		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	5303912532		Hose,water Inlet ,hot   (Replaces: 131279603)				$ 88.20
7	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
10	131278700		Frame,outer Door ,white				$ 217.35
11	131278800		Panel,door Glass				$ 209.27
12	134426500		Frame,inner Door ,white   (Replaces: 131278900)			Immediately	$ 159.80
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763310		Striker,door/lock/sw			Immediately	$ 17.15
15	134264600		Hinge,door				$ 63.96
16	131696300		Screw,quad Pan Head ,10-16 X 0.312				$ 9.93
17	131346400		Pin,panel Locator ,side				$ 12.44
18	131279300		Panel,service ,white ,kick Plate				$ 231.95
19	218362501		Screw,hex Washer Hd ,8-18ab X 1.125   (Replaces: 131358400)				$ 12.05
20	131460900		Bracket,top Panel Mtg. ,front				$ 48.56
21	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
22	131279500		Retainer,spring Steel				$ 30.43
23	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
24	134086832		Panel,washer Top ,white ,console Mtg		Appelez-nous	-
25	131668200		Bracket,top Panel Mtg.				$ 40.48
26	134178901		Screw,8-18ab X 0.455				$ 14.89
28	131978500		Panel-back				$ 114.59
29	131752030		Panel,cabinet Front ,white				$ 226.75
30	131859600		Shield-overflow				$ 38.12
32	5303209428		Bushing,power Cord				$ 17.01
35	131732902		Bracket,reinforcement ,top Rear				$ 44.78
36	131841600		Leveling Leg Assy,bolt,pad & Nut				$ 29.06
39	134178900		Screw,quad ,8-18ab X 0.455		Appelez-nous	-
44	131707800		Ring-drain Hose				$ 45.25
45	134592700		Hose-drain   (Replaces: 134049200)			Immediately	$ 89.31
58	131800410		Noise Absorber		Appelez-nous	-
65	131894600		Housing,temp Cont Board		Appelez-nous	-
70	134048600		Shield,drip Protector		Appelez-nous	-
71	134048400		Base,controller Mtg		Appelez-nous	-
76	134390701		Panel,side ,white ,rs/ls ,(2)				$ 155.24
77	131458240		Base Plate		Appelez-nous	-
58A	131744202		Damper,vibration		Appelez-nous	-
F31	5304505407		Power Cord,electric Svce   (Replaces: 134100800)				$ 88.20
F33	134190200		Valve-water   (Replaces: 5303207418)			Immediately	$ 153.09
F4	134149200		Controller Assy,speed ,w/base & Shield		Appelez-nous	-
F64	134226600		Control Board,temperature ,automatic				$ 246.33
F8	131763256		Door Lock/switch Assy   (Replaces: 131763200)			Immediately	$ 146.76
NI	5303937142		Shipping Brace Kit				$ 248.43

    View Diagram in Separate Window       Print Part List
