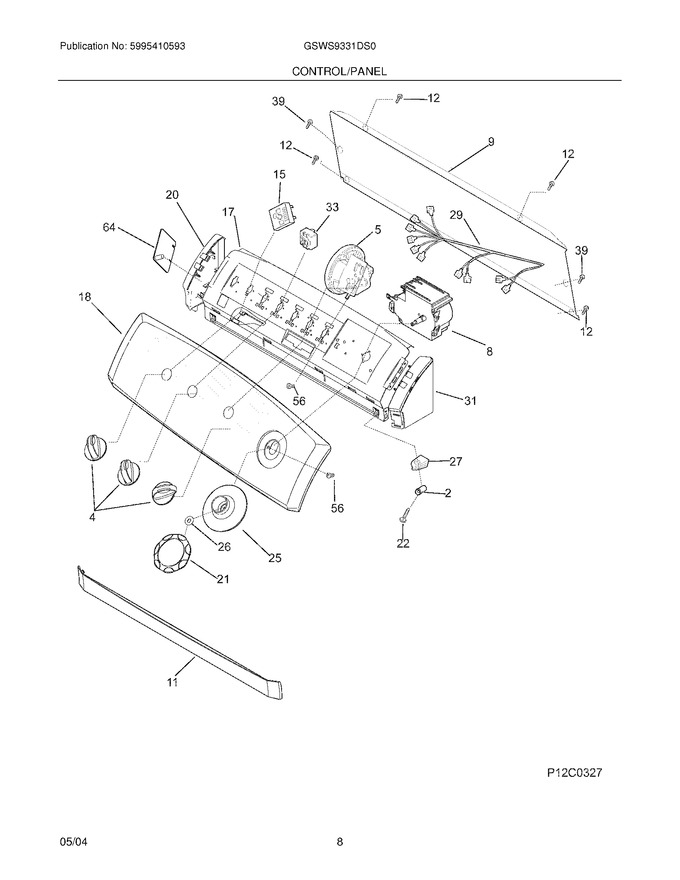

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034900)			Immediately	$ 57.36
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019900		Closure,console Trim ,white ,front				$ 66.68
12	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
17	131993040		Bracket,control Mtg.				$ 46.83
18	134401500		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134035200		Knob,timer ,white ,assy				$ 41.27
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134035100		Pointer,timer Knob ,white ,dark Gray Ind.				$ 35.22
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-console Mtg				$ 13.62
29	134395200		Harness		Appelez-nous	-
31	134019600		End Cap,white ,rh				$ 46.10
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	134394600		Switch,temp Selector ,3 Position		Appelez-nous	-
F33	131243200		Switch,2 Position		Appelez-nous	-
F5	134421000		Switch,pressure ,infinite   (Replaces: 134218500)				$ 213.26
F64	134224300		Control Board,temperature ,automatic				$ 214.46
F8	134049500		Timer,5-off				$ 275.71
NI	134400400		Energy Guide		Appelez-nous	-
