SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Transmission

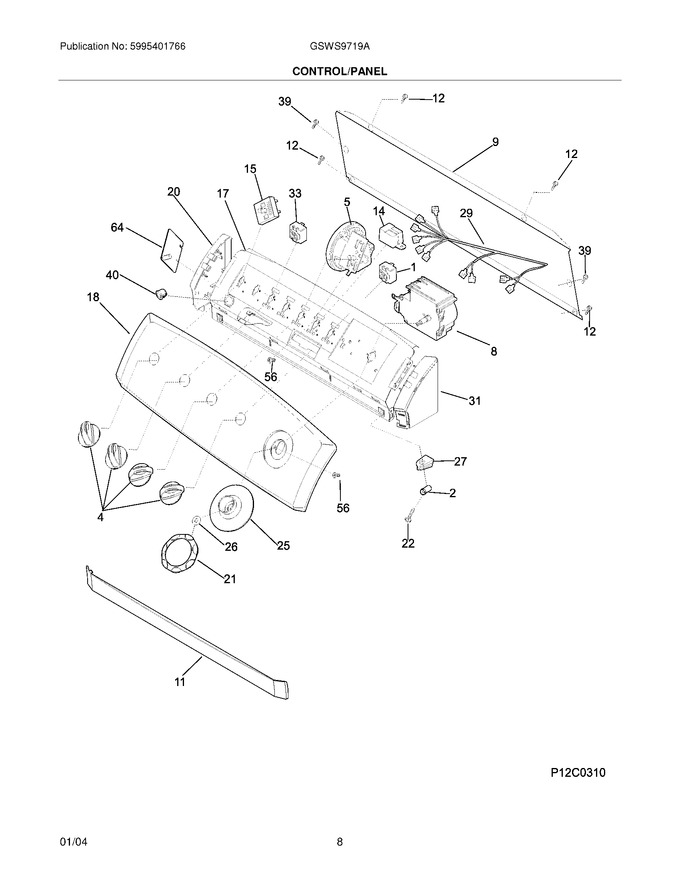

09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034900)			Immediately	$ 57.36
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019900		Closure,console Trim ,white ,front				$ 66.68
12	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134220300		Panel,trimplate ,console Front		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134034800		Knob,timer ,white ,assy				$ 54.13
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134034700		Pointer-timer				$ 54.60
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	131893500		Switch,3 Speed ,4 Posn Rotary				$ 82.37
F14	134086900		Buzzer-non Adjustable		Appelez-nous	-
F15	131858100		Switch,temp Selector ,7 Posn Rotary		Appelez-nous	-
F29	134287700		Wiring Harness		Appelez-nous	-
F33	134047700		Switch,option Selector ,4 Position		Appelez-nous	-
F40	134040800		Switch,on/off ,white ,round				$ 65.92
F5	134421000		Switch,pressure ,infinite   (Replaces: 134218500)				$ 213.26
F64	134224300		Control Board,temperature ,automatic				$ 214.46
F8	134173100		Timer				$ 523.74
NI	134355300		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
