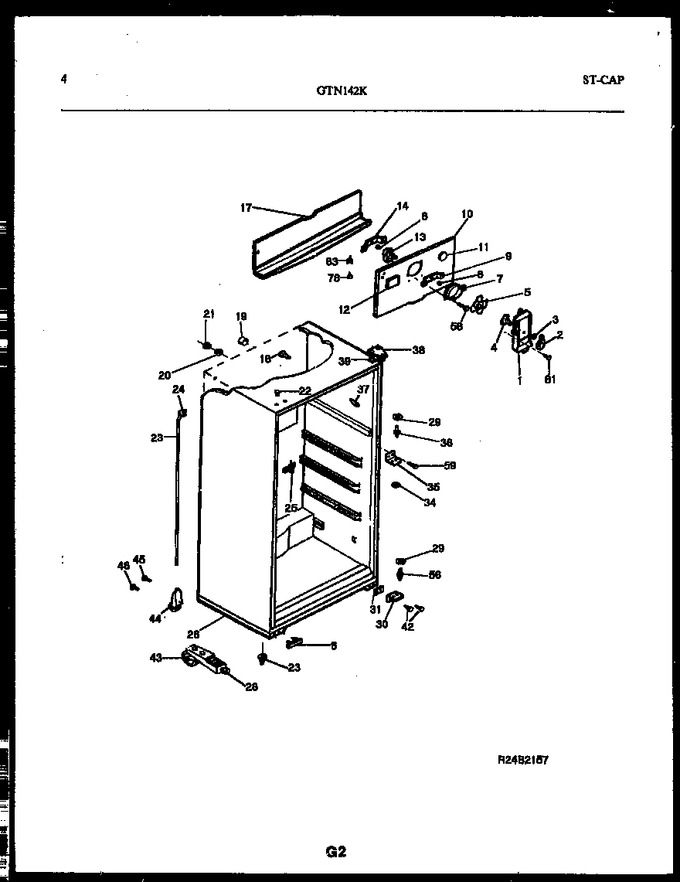

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303277007 | Cover-fan |
|
- | |||||
| 2 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 3 | 5303001028 | Nut, Push |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 6 | 5303001478 | Cover-lwr Hng Holes |
|
- | |||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 3001358 | Cover - Evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 5308013636 | Plug, Decorative, Ice Maker Hole |
|
- | |||||
| 13 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 08003638 | Trough-drain |
|
- | |||||
| 18 | 5308000097 | Support, Evap Cover, (2) |
|
- | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 5303001388 | Plug-button, White, Upr Hinge Holes |
|
$ 2.60 | |||||
| 23 | 5303210377 | Tube-drain, W/seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 26 | 5303006086 | Base-cabinet |
|
- | |||||
| 28 | 5308009761 | Bolt, Roller Adj (2) |
|
$ 18.61 | |||||
| 10A | 5303209636 | Screw-coil Cover, Phl Hd Spc Trus, 8-15a X 5/8 (non-ill |
|
- | |||||
| 25A | 5303001361 | Pin, Push, Drain Spout (2) (non-illustrated) |
|
- | |||||
| 28A | 5308011326 | Washer-adj Bolt, Nylon, (2) (non-illustrated) |
|
$ 9.87 |
