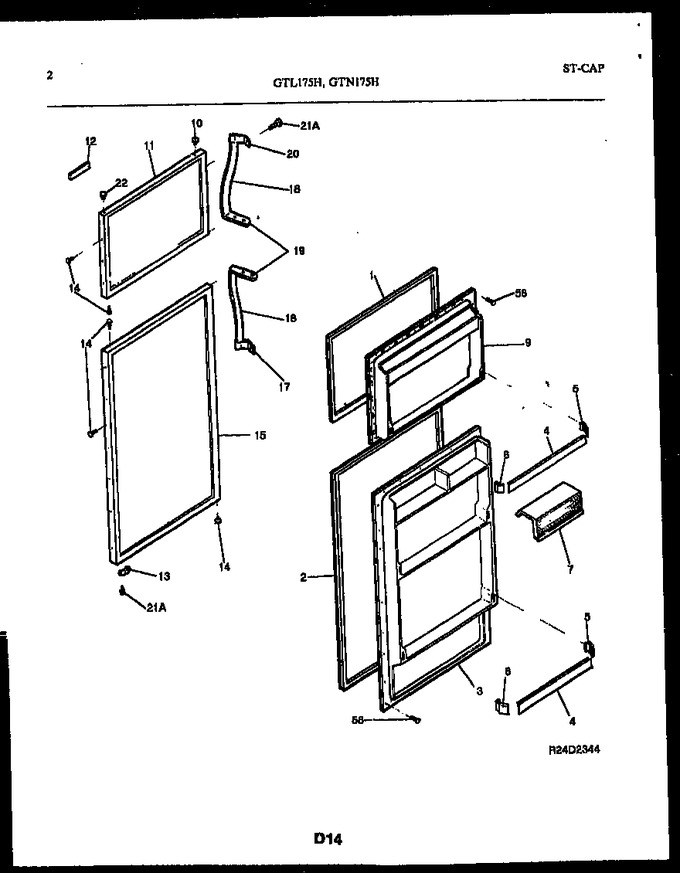

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 3 | 5318560201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303016720 | Rack-door, (3) |
|
- | |||||
| 5 | 5303001410 | Support-door Rack, Rh, (3) |
|
- | |||||
| 6 | 5303001411 | Support-door Rack, Lh, (3) |
|
- | |||||
| 7 | 5316177644 | Door-dairy |
|
- | |||||
| 9 | 5318560101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000176 | Plug-button, Wheat, Hinge Brg Hole |
|
- | |||||
| 11 | 5318559909 | Panel-frzr Door, Wheat |
|
- | |||||
| 12 | 3001025 | Frame-nameplate, W/ Tape |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000180 | Plug-button, Wheat, Handle/dr Stop |
|
- | |||||
| 15 | 5318560009 | Panel-refr Door, Wheat |
|
- | |||||
| 17 | 5303001297 | Handle End |
|
$ 70.22 | |||||
| 18 | 3001531 | Grip-handle (2) |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001295 | Handle End |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *74385 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
