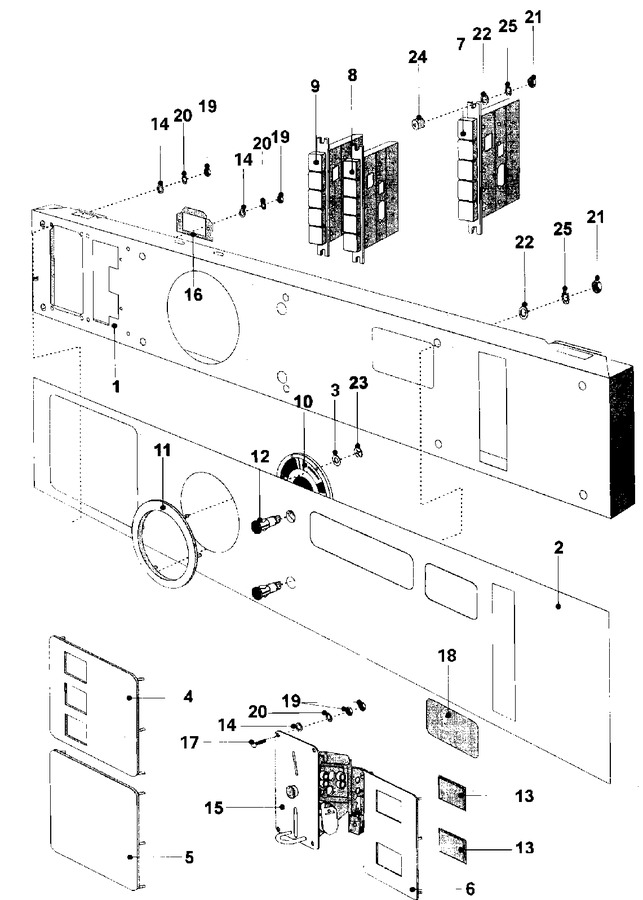

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003287		Panel, Control	56	Appelez-nous	-
002	NLA		Panel, Facia (20c On 3)	56	Appelez-nous	-
003	23002325		Washer	56	Appelez-nous	-
004	NLA		Plate, Index (push Buttons)	56	Appelez-nous	-
005	NLA		Plate, Index	56	Appelez-nous	-
006	23002522		Plate, Index (without Holes)	56	Appelez-nous	-
006	NLA		Plate, Index (coin Meter)	56	Appelez-nous	-
007	23002491		Switch, Program Selector	56	Appelez-nous	-
008	23002492		Switch, Selector W/red Button	56	Appelez-nous	-
009	23002493		Switch, Selector	56	Appelez-nous	-
010	23002495		Disk, Indicator (symbols)	56	Appelez-nous	-
010	23002497		Disk, Indicator (english)	56	Appelez-nous	-
011	23001044		Ornamental Ring Indicator Disc	56	Appelez-nous	-
012	23001046		Lamp, Indicator	56	Appelez-nous	-
013	23001047		Lens, Transparent	56	Appelez-nous	-
013	23001049		Lens, Transparent Red	56	Appelez-nous	-
013	NLA		Insert, Aluminium	56	Appelez-nous	-
014	23001670		Washer (m4)	56	Appelez-nous	-
015	23001063		Coin Meter (25 Cents-240v)	56	Appelez-nous	-
015	23001350		Coin Meter (25 Cents-115v)	56	Appelez-nous	-
016	23002864		Plate, Fixation (plexi)	56	Appelez-nous	-
017	23001064		Screw (m3x10)	56	Appelez-nous	-
018	NLA		Plate, Insert	56	Appelez-nous	-
019	23002500		Washer, Lock	56	Appelez-nous	-
020	NLA		Lockwasher (m3)	56	Appelez-nous	-
021	23002399		Nut(m4)	56	Appelez-nous	-
022	23001056		Washer (4.3)	56	Appelez-nous	-
023	23001057		Speednut (m3)	56	Appelez-nous	-
024	23001058		Spacer	56	Appelez-nous	-
025	23002111		Washer (4)	56		Immediately	$ 221.87
