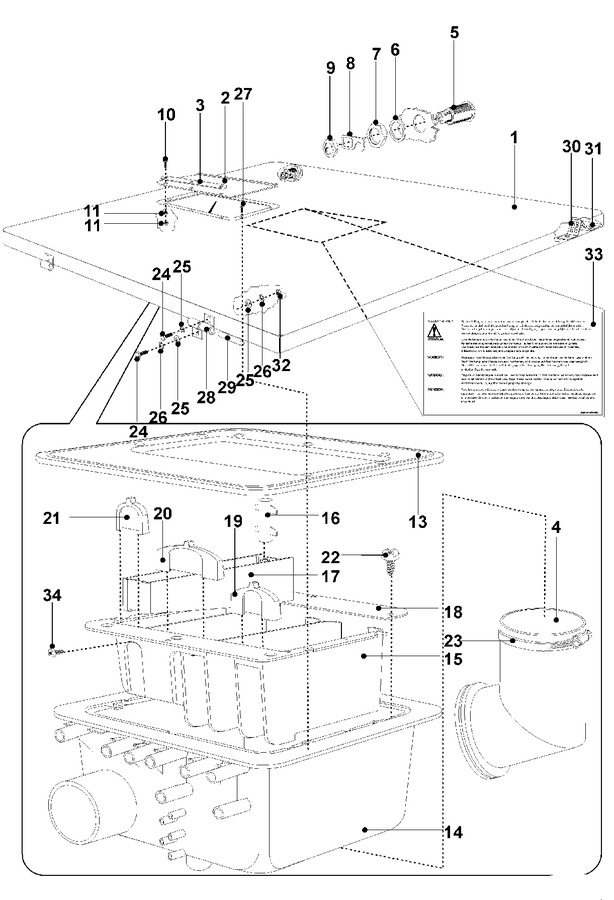

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003779		Cover W/two Locks (mfr18)	10	Appelez-nous	-
002	23002111		Rubber Cover, Soap Box   (Replaces: 23001003)	10		Immediately	$ 221.87
003	23003781		Lacth, Soap Hopper Cover	10	Appelez-nous	-
004	23001005		Rubber Hose, Soap Box	10			$ 1,087.08
005	23001006		Lock, Top Panel	10	Appelez-nous	-
006	23001007		Washer, Fiber	10	Appelez-nous	-
007	23001008		Lock Nut (large)	10			$ 186.62
008	23001009		Lock Hook (short)	10	Appelez-nous	-
009	23001011		Nut	10	Appelez-nous	-
010	23001012		Screw (m4 X 12 Stnls Steel)	10			$ 13.48
011	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
013	23001015		Rubber Seal, Soap Box	10	Appelez-nous	-
014	23001016		Soap Box Housing	10	Appelez-nous	-
015	23001017		Soap Box Insert	10	Appelez-nous	-
016	23001018		Siphon	10	Appelez-nous	-
017	23001019		Tray	10	Appelez-nous	-
018	23001020		Cover, Plate	10	Appelez-nous	-
019	23001021		Drawer, Prewash	10	Appelez-nous	-
020	23001022		Drawer, Main Wash	10	Appelez-nous	-
021	23001023		Drawer, Last Rinse	10	Appelez-nous	-
022	23003782		Screw 3 Stainless Steel Lu	10			$ 3.66
023	WP696392		Clamp, Hose (dia 90/110)   (Replaces: 23001025)	10			$ 7.31
024	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
025	23003012		Washer Lu	10	Appelez-nous	-
026	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
027	23002894		Screw (m5x15)	10	Appelez-nous	-
028	23001030		Hinge, Top Cover	10	Appelez-nous	-
029	23001031		Hinge Shaft (10 X 56 Brass)	10	Appelez-nous	-
030	23001032		Clamp, Srv	10	Appelez-nous	-
031	23001033		Rivets, Blind (dia. 3.2 X 8)lu	10	Appelez-nous	-
032	23002436		Nut (m6)	10	Appelez-nous	-
033	23001550		Label, Earth	10	Appelez-nous	-
034	23003783		Screw 2	10	Appelez-nous	-
