SELECT A DIAGRAM

01 - Base Frame


02 - Cabinet


03 - Top Cover


04 - Door


05 - Door Lock


06 - Control Panel


07 - Coin Vault


08 - Soap Box, Drain And Hose Asy

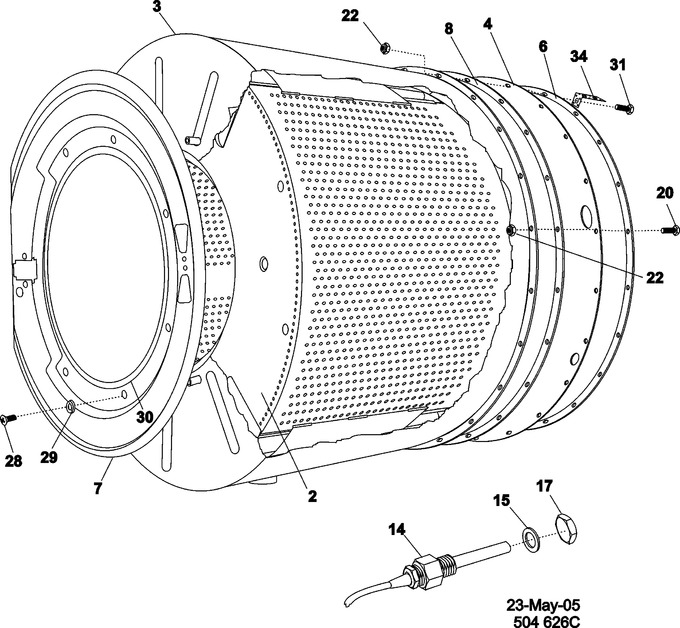

09 - Basket And Outer Tub


10 - Motor And Drive Asy


11 - Trunnion And Bearings


12 - Rear Panel And Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23004305		Inner Tub And Shaft Mfr18	10	Appelez-nous	-
003	23003806		Tub (round Door) (mfr18)	10	Appelez-nous	-
004	23003790		Plate Base Without/holes	10	Appelez-nous	-
006	NLA		Ring	10	Appelez-nous	-
007	NLA		Shield	10	Appelez-nous	-
008	23001387		Gasket, Shell (rear)	10	Appelez-nous	-
014	23003807		Holder Thermostat Sensor	10	Appelez-nous	-
015	23002179		Washer	10	Appelez-nous	-
017	23002936		Nut, Sensor Bushing	10	Appelez-nous	-
020	23002646		Screw (m8 X 40)	10	Appelez-nous	-
022	23001607		Nut (m8)	10	Appelez-nous	-
028	23002617		Screw (m4x8)	10	Appelez-nous	-
029	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
030	23002473		Rubber, Protective	10			$ 4.52
031	23003765		Bolt M8x35	10	Appelez-nous	-
034	23003791		Plate,motor Wiring Fixation	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
