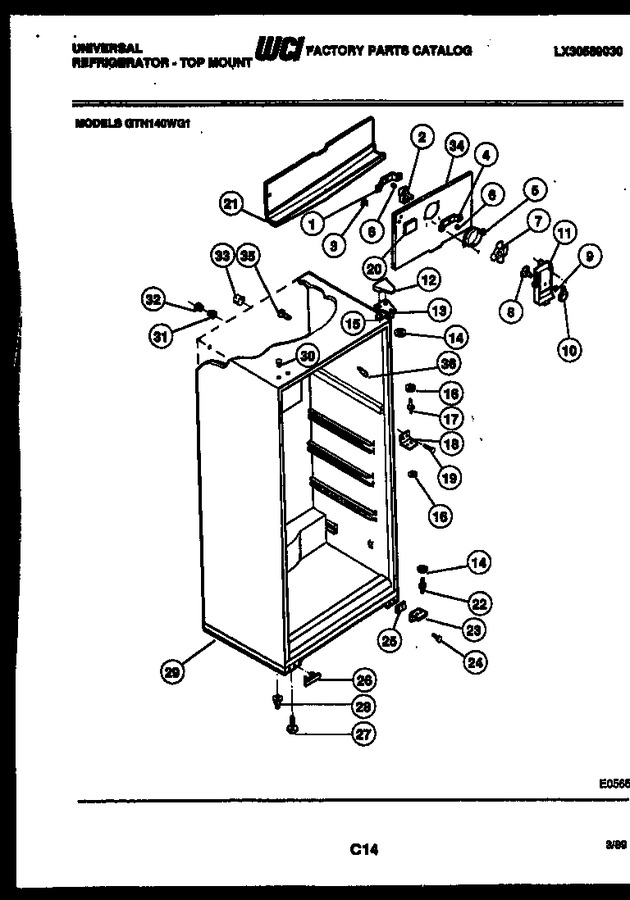

SELECT A DIAGRAM

01 - Cover


02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185303		Bracket-rear		Appelez-nous	-
2	G173301		Fan Motor		Appelez-nous	-
3	G164571		Connector Bracket		Appelez-nous	-
4	G185302		Bracket-front		Appelez-nous	-
5	G167217		Orifice Ring		Appelez-nous	-
6	G187559		Bushing (2)				$ 48.20
7	G174705		Fan Blade		Appelez-nous	-
8	G162661		Damper		Appelez-nous	-
9	G162662		Push Nut-damper		Appelez-nous	-
10	3001543		Knob-damper Control		Appelez-nous	-
11	G163061-73		Fan Cover		Appelez-nous	-
12	G183558-09		Hinge Cover-wheat		Appelez-nous	-
13	G183714		Hinge-top		Appelez-nous	-
14	G103903		Washer, Nylon				$ 3.10
15	G183861		Shim Top Hinge		Appelez-nous	-
16	G164355		Washer-center Hinge (2)		Appelez-nous	-
17	G142220		Pin		Appelez-nous	-
18	G163207		Bracket-center Hinge		Appelez-nous	-
19	G183103		Screw-hinge Mtg (2)		Appelez-nous	-
20	3001328		Plug-decorative		Appelez-nous	-
21	G163292		Drain Trough		Appelez-nous	-
22	G166505		Pin-bottom Hinge		Appelez-nous	-
23	G181019		Bracket-bttm Hinge		Appelez-nous	-
24	G181020		Screw-hinge Mtg (2)		Appelez-nous	-
25	G163203		Shim-bottom Hinge		Appelez-nous	-
26	G166912		Plug-hinge Hole		Appelez-nous	-
27	G185713		Leveling Screw (2)		Appelez-nous	-
28	G163205		Drain Tube		Appelez-nous	-
29	G161998-01		Cabinet Base		Appelez-nous	-
30	G174747-09		Plug-button, Wheat		Appelez-nous	-
31	G174733		Ferrule, Inner		Appelez-nous	-
32	G174734		Ferrule Outer		Appelez-nous	-
33	G85642		Tube, Rubber (2)		Appelez-nous	-
34	G163290		Cover-evaporator Coil		Appelez-nous	-
35	G163669		Support, Coil Cover (2)		Appelez-nous	-
36	G162364-09		Corner Trim-wheat		Appelez-nous	-
*12033	G187599		Plug-liner (8)		Appelez-nous	-
11A	G187363		Screw		Appelez-nous	-
13A	G167103		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
13B	G179797		Tapping Plate (non-illustrated)		Appelez-nous	-
19A	G166847		Washer-steel (2)		Appelez-nous	-
24A	G179797		Tapping Plate (non-illustrated)		Appelez-nous	-
27A	G183073		Anchor Nut-screw (2) (non-illustrated)		Appelez-nous	-
34A	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
34B	3018768		Plug-short Test Hole (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
5A	G144049		Screw		Appelez-nous	-
