SELECT A DIAGRAM

01 - Soap Box & Top Cover Assy. (series 10)


02 - Timer & Coin Assembly (series 10)


03 - Control Panel-pc (series 10)


04 - Main Control (series 10)


05 - Door Lock Assembly (series 10)


06 - Door


07 - Basket & Outer Shell Assy. (series 10)


08 - Bearings & Trunnion Assy. (series 10)


09 - Drain & Hose Assembly (series 10)


10 - Motor & Basket Pulley (series 10)


11 - Base Frame (series 10)


12 - Cabinet (series 10)


13 - Water Valve & Rear Panel (series 10)


14 - Soap Box & Top Cover Assy. (series 11)


15 - Control Panel-pc (series 11)


16 - Timer & Coin Meter Assy. (series 11)


17 - Main Control (series 11)


18 - Water Valve & Rear Panel (series 11)


19 - Basket & Outer Shell Assy. (series 11)


20 - Drain & Hose Assembly (series 11)


21 - Motor & Basket Pulley (series 11)


22 - Base Frame (series 11)


23 - Cabinet (series 11)


24 - Bearings & Trunnion Assy. (series 11)


25 - Door Lock Assembly (series 11)

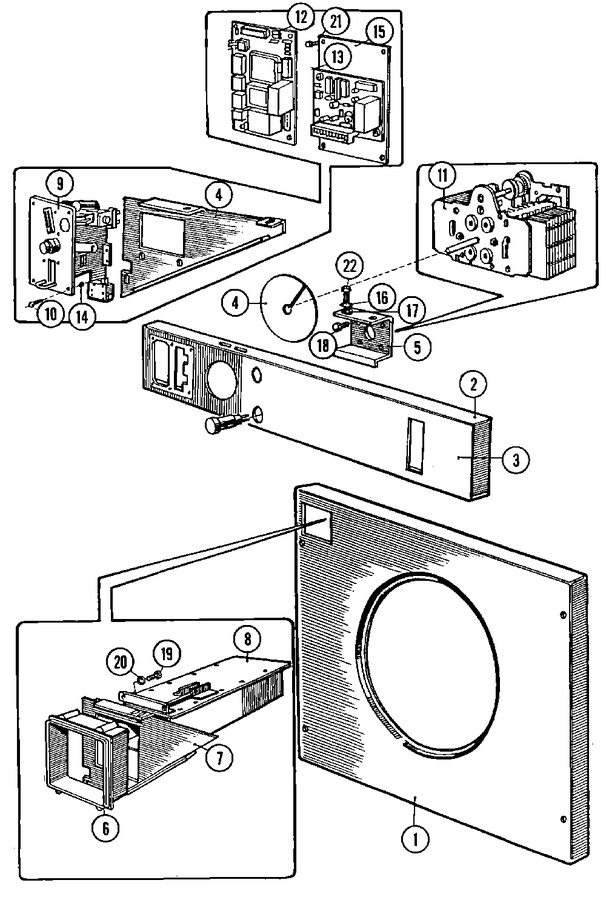

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001347		Front Panel, 26x27 1/2	10	Appelez-nous	-
002	NLA		Plate, Back-up (coin Meter)	10	Appelez-nous	-
003	NLA		Panel, Control	10	Appelez-nous	-
004	23001060		Indicator Disc, Timer	10	Appelez-nous	-
005	23001061		Timer, Support	10	Appelez-nous	-
006	23001062		Collar, Coin Vault	10	Appelez-nous	-
007	NLA		Vault, Support Coin	10	Appelez-nous	-
008	23001349		Vault, Coin	10	Appelez-nous	-
009	23001063		Meter, Coin (25 Cents-240v)	10	Appelez-nous	-
009	23001350		Meter, Coin (25 Cents-115v)	10	Appelez-nous	-
010	23001064		Screw, Ornamental (m3 X 10)	10	Appelez-nous	-
011	23001065		Timer (pr 6023 230v)	10			$ 248.09
011	23001351		Timer (pr 6023-115v)	10	Appelez-nous	-
011	23002203		Motor, Timer (230v-small)	10	Appelez-nous	-
011	23002204		Motor, Timer (230v-large)	10	Appelez-nous	-
012	23001693		Memory	10	Appelez-nous	-
012	23001066		Counter, Coin (w/led Display)	10	Appelez-nous	-
013	23001068		Relay, Start	10	Appelez-nous	-
013	W10124350		Not Required Part Or See Note	10	Appelez-nous	-
014	23001053		Nut (m3)	10	Appelez-nous	-
015	NLA		Mounting Plate, Start Relay	10	Appelez-nous	-
016	23001028		Lockwasher (external Teeth M6)	10	Appelez-nous	-
017	23001027		Washer (dia. 12x6.5x1.6)	10	Appelez-nous	-
018	23001069		Bolt (m4x4)	10	Appelez-nous	-
019	23001070		Screw (m4x10)	10	Appelez-nous	-
020	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
021	23001052		Screw (m3 X 6 Cross Recessed)	10	Appelez-nous	-
022	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
023	23001038		Conversion Kit (mc To Mn)	10	Appelez-nous	-
023	23002195		Pc-pn Conversion Kit	10	Appelez-nous	-
023	23002333		Pc To Pn Conversion (csa)	10	Appelez-nous	-
023	23002334		Mc To Mn Convers.(csa)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
