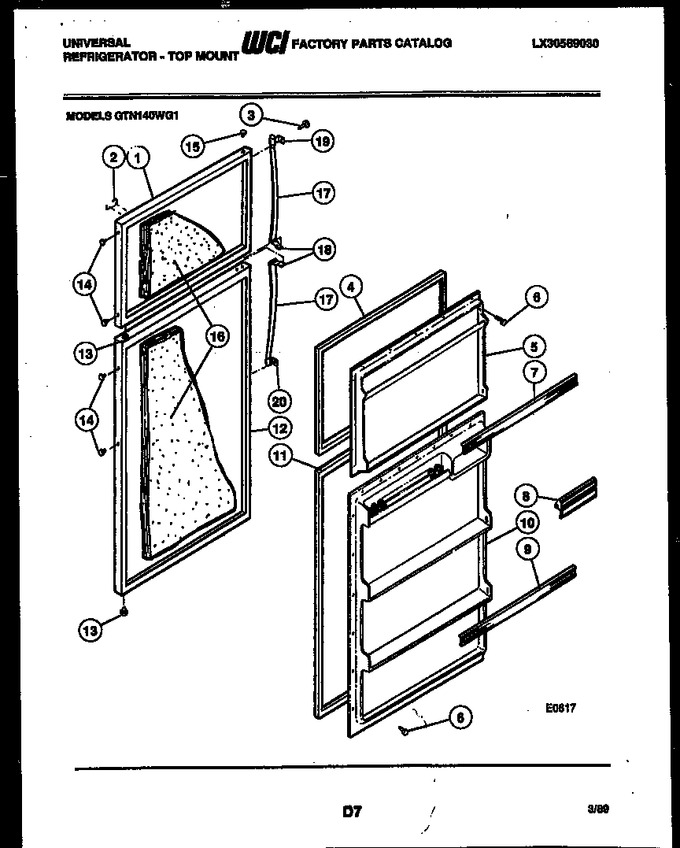

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186221-08		Freezer Door-avocado		Appelez-nous	-
1	G186221-10		Freezer Door-coffee		Appelez-nous	-
1	G186221-09		Freezer Door-wheat		Appelez-nous	-
1	G186221-11		Freezer Door-almond		Appelez-nous	-
1	G186221		Freezer Door-white		Appelez-nous	-
2	G171161-01		Frame-nameplate		Appelez-nous	-
3	G185566		Screw		Appelez-nous	-
4	G186932-03		Gasket-freezer		Appelez-nous	-
5	3001528		Inner Panel-freezer		Appelez-nous	-
6	G162585		Screw		Appelez-nous	-
7	3001511		Door Rack-freezer		Appelez-nous	-
8	3001538		Dairy Door		Appelez-nous	-
9	3001539		Door Rack-refrigerator		Appelez-nous	-
10	3001540		Inner Panel-refrigerator		Appelez-nous	-
11	G186932-02		Gasket-refrigerator		Appelez-nous	-
12	G186234-10		Refrigerator Door-coffee		Appelez-nous	-
12	G186234-08		Refrigerator Door-avocado		Appelez-nous	-
12	G186234		Refrigerator Door-white		Appelez-nous	-
12	G186234-11		Refrigerator Door-almond		Appelez-nous	-
12	G186234-09		Refrigerator Door-wheat		Appelez-nous	-
13	G183138		Bearing Hinge (8)		Appelez-nous	-
14	G162977-08		Button Plug-avocado		Appelez-nous	-
14	G162977-09		Button Plug-wheat		Appelez-nous	-
14	G162977-10		Button Plug-coffee		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
14	G162977-01		Button Plug-white		Appelez-nous	-
15	G169332-11		Button Plug, Almond		Appelez-nous	-
15	G169332-09		Button Plug, Wheat		Appelez-nous	-
15	G169332-08		Button Plug-avocado		Appelez-nous	-
15	G169332-10		Button-plug, Coffee		Appelez-nous	-
15	G169332-01		Button Plug, White		Appelez-nous	-
16	G89643		Insulation (bulk)		Appelez-nous	-
17	3001531		Grip-handle (2)		Appelez-nous	-
18	G187329-01		Handle End (2)		Appelez-nous	-
19	G179800		Handle End-top		Appelez-nous	-
20	G179801		Handle End-bottom		Appelez-nous	-
*20973	G185566		Screw		Appelez-nous	-
2A	G153407-12		Tape-frame Mounting (non-illustrated)		Appelez-nous	-
