Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 23004128 Coinbox Vault Appelez-nous -
003 23004129 Coinbox Frame Appelez-nous -
004 23004130 Coinbox Bracket Appelez-nous -
005 23004114 Screw (m6 X16)   (Replaces: 23002461) Appelez-nous -
006 23004095 Bolt M4x16 Appelez-nous -
007 23002423 Screw (m4 X 10) Appelez-nous -
008 23002950 Lock Washer M4 Appelez-nous -
009 23002756 Washer Appelez-nous -
010 23002504 Washer Appelez-nous -
011 23003012 Washer Lu Appelez-nous -
012 23003666 Nut (m4) Appelez-nous -
013 23003656 Switch, Coin Box Appelez-nous -
014 23001113 Connector Housing (4 Pole) Appelez-nous -
015 23001115 Insulation Paper Appelez-nous -
016 23001012 Screw (m4 X 12 Stnls Steel) Special Order $ 13.48

017 23002438 Washer (m6) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

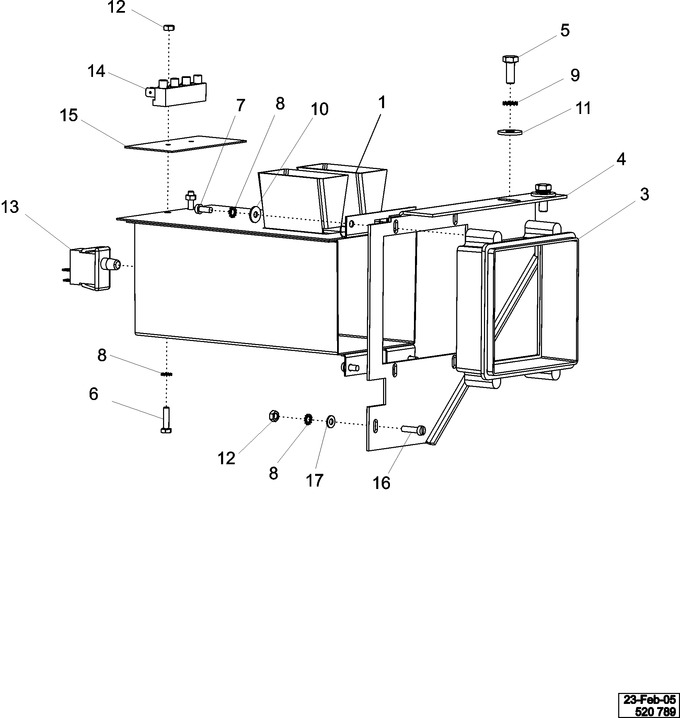

Diagram for MFR30PDCTS
