SELECT A DIAGRAM

01 - Control Panel (mc)


02 - Timer & Coin Assembly


03 - Control Panel (pc/pn)


04 - Main Controls (mc)


05 - Water Valve & Rear Panel


06 - Door Lock Assembly


07 - Door


08 - Basket & Outer Shell Assembly


09 - Bearings & Trunnion Assembly


10 - Drain & Hose Assembly


11 - Motor & Basket Pulley


12 - Base Frame


13 - Cabinet


14 - Base Frame (series 11)


15 - Cabinet (series 11)


16 - Timer & Coin Assembly (series 11)


17 - Soap Box & Top Cover Assembly


18 - Door Lock Assembly (series 11)


19 - Drain & Hose Assembly (series 11)


20 - Water Valve & Rear Panel (series 11)


21 - Motor & Basket Pulley (series 11)


22 - Basket & Outer Shell Assembly(series 11)


23 - Door (series 11)


24 - Bearings & Trunnion Assembly (series 11)


25 - Electrical Components (series 11)

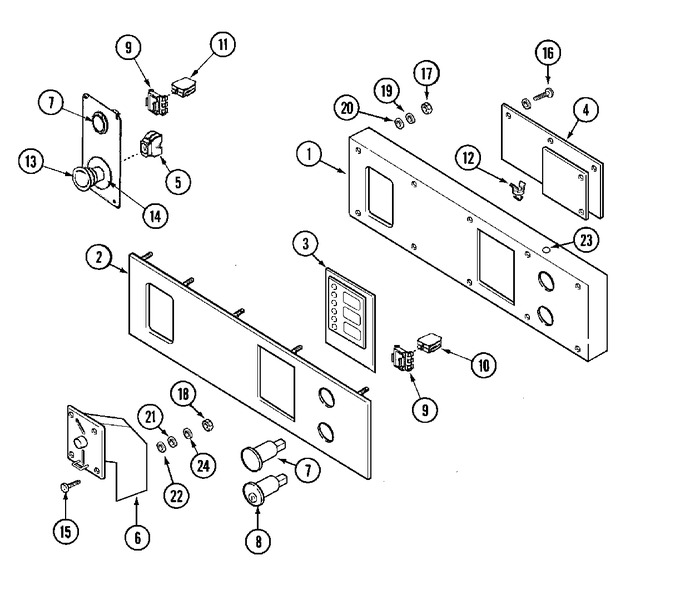

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001339		Nut, Cage	10	Appelez-nous	-
001	NLA		Bolt (m6x16)	10	Appelez-nous	-
002	NLA		Facia, Control Panel (pc)	10	Appelez-nous	-
003	23001526		Plexi, Microprocessor	10			$ 555.21
004	23001525		Microprocessor	10	Appelez-nous	-
004	23003741		Controller, Apl283a V1.07 (english, Spanish)	10	Appelez-nous	-
004	23003742		Controller, English, Spanish	10	Appelez-nous	-
004	23003743		Controller, Apl281ne V1.04	10	Appelez-nous	-
005	23002331		Contactor, Central Stop	10	Appelez-nous	-
006	23001063		Meter, Coin (25 Cents-240v)	10	Appelez-nous	-
007	23001537		Button, Push	10	Appelez-nous	-
008	23001538		Block, Key	10	Appelez-nous	-
009	23001540		Adapter, Contact Block	10	Appelez-nous	-
010	23001541		Block, Contact (on)	10	Appelez-nous	-
011	23002873		Block, Contact (off)	10	Appelez-nous	-
012	23001542		Holder	10	Appelez-nous	-
013	23002332		Knob, Central Stop	10	Appelez-nous	-
014	23002330		Label, Central Stop	10	Appelez-nous	-
015	23001064		Ornamental Screw (m3 X 10)	10	Appelez-nous	-
016	23001544		Bolt (m3x10)	10	Appelez-nous	-
016	23002174		Washer (3.2)	10	Appelez-nous	-
017	23001055		Nut (m4)	10	Appelez-nous	-
018	23001053		Nut (m3)	10	Appelez-nous	-
019	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
020	23002111		Washer (4)	10		Immediately	$ 221.87
021	23002174		Washer (3.2)	10	Appelez-nous	-
022	23001610		Washer (4.3)	10	Appelez-nous	-
023	NLA		Label, Earth	10	Appelez-nous	-
024	NLA		Lockwasher (m3)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
