SELECT A DIAGRAM

01 - Cover


02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178225		Condenser		Appelez-nous	-
2	G164637		Bracket-condenser Mounting (4)		Appelez-nous	-
3	G164820		Washer-no. 10 Ext Tooth Lock (non-illustrated)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G174818		Wiring Harness-control		Appelez-nous	-
5	G166062-01		Wiring, Harness, Compressor		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G187009		Screw-8-15 X 1/2		Appelez-nous	-
8	G162549-01		Service Cord		Appelez-nous	-
9	G27669		Clamp-cable (3)		Appelez-nous	-
10	G168978		Clamp-harness		Appelez-nous	-
11	08000027		Drier-filter		Appelez-nous	-
12	3916012		Compressor W/ Electricals		Appelez-nous	-
13	G184715		Pan-defrost Service Compr (non-illustrated)		Appelez-nous	-
13	G171129		Pan-defrost-orig Compr		Appelez-nous	-
14	G164958		Lock Nut-pan Mounting		Appelez-nous	-
15	G163204		Clip (3)		Appelez-nous	-
16	G164634		Washer (3)		Appelez-nous	-
17	G177617		Grommet (4)		Appelez-nous	-
18	G162822		Plate, Compressor Mounting		Appelez-nous	-
19	G182225-18		Relay		Appelez-nous	-
20	3202891		Overload-clip (non-illustrated)		Appelez-nous	-
20	3202863		Overload		Appelez-nous	-
21	08016583		Cover-terminal		Appelez-nous	-
22	08016584		Strap-terminal Cover		Appelez-nous	-
23	3018427		Capacitor-compressor Run		Appelez-nous	-
24	3018428		Strap-capacitor Mounting		Appelez-nous	-
25	3201079		Heat Exchanger		Appelez-nous	-
26	G88088		Clamp-exchanger		Appelez-nous	-
27	G162432-02		Heater-defrost		Appelez-nous	-
28	3201078		Evaporator		Appelez-nous	-
29	G165546		Strap-heater/evaporator (2)		Appelez-nous	-
30	G169024-02		Insulator-evaporator		Appelez-nous	-
31	G185299		Insulation Block Rs		Appelez-nous	-
32	G185276		Insulation Plug Rs		Appelez-nous	-
33	G188375		Insulation Block Ls		Appelez-nous	-
34	G162690-01		Thermostat, Defrost		Appelez-nous	-
35	3916001		Pan Retainer Kit (included With Item 12)		Appelez-nous	-
36	3201679		Clamp-drier		Appelez-nous	-
37	3001001		Screw-clamp		Appelez-nous	-
*45089	G189377		Hot Tube Repair Kit		Appelez-nous	-
*45089	G169873		Sound Tape-pan		Appelez-nous	-

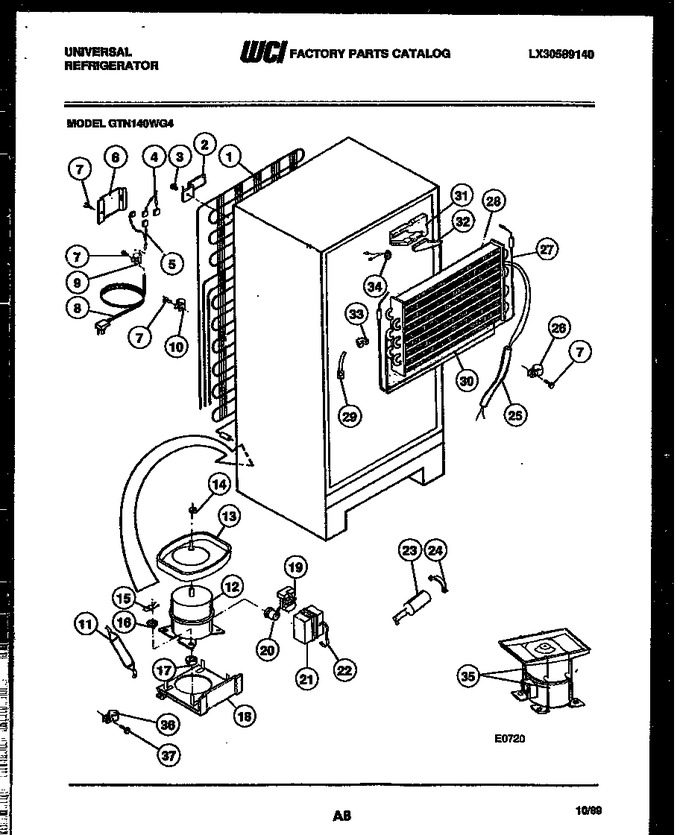

    View Diagram in Separate Window       Print Part List
