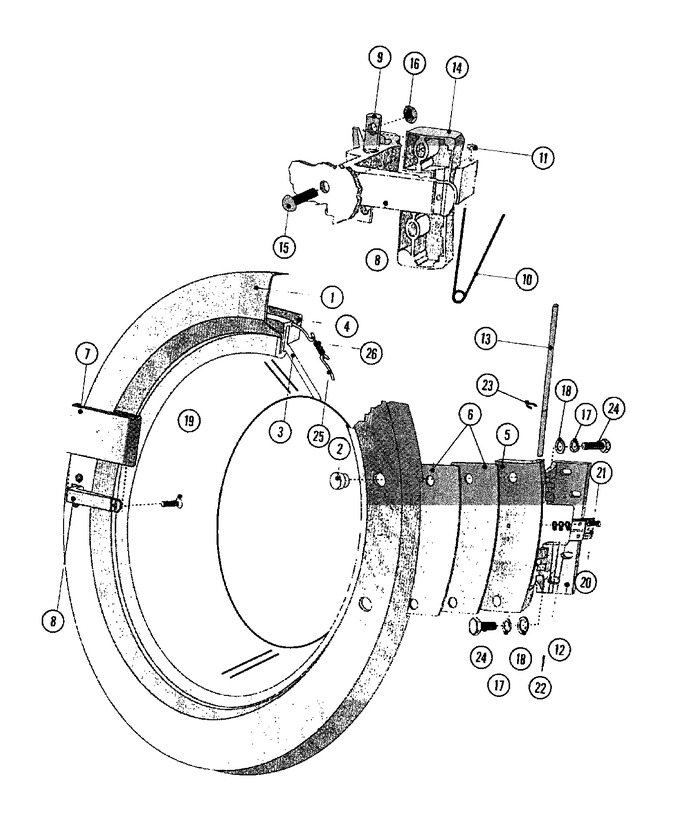

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001161		Ring, Door	11	Appelez-nous	-
002	23001162		Nut, Ornamental (stnls Steel)	11	Appelez-nous	-
003	23001163		Glass, Door	11	Appelez-nous	-
004	23001164		Gasket, Door Glass	11	Appelez-nous	-
005	23001165		Plate, Hinge	11	Appelez-nous	-
006	23001166		Shim, Hinge Plate	11			$ 2,741.81
007	12001189		Panel Kit, Front Handle, Front & Back Included	14	Appelez-nous	-
007	23001510		Handle, Door	11	Appelez-nous	-
008	23003634		Lever, Door	14	Appelez-nous	-
008	NLA		Lever, Handle	11	Appelez-nous	-
009	23001168		Shaft, Lever	11	Appelez-nous	-
010	23001169		Spring, Handle Lever	11	Appelez-nous	-
011	23001057		Speednut (m3)	11	Appelez-nous	-
012	23001171		Base, Hinge	11	Appelez-nous	-
013	23001172		Shaft, Door Hinge	11	Appelez-nous	-
014	23001173		Handle, Lever Plate	11	Appelez-nous	-
015	23002937		Screw (m6x26)	11	Appelez-nous	-
016	23001176		Nut (m6 Stainless Steel)	14	Appelez-nous	-
016	23002280		Nut M6	11	Appelez-nous	-
017	23002130		Washer (6)	11	Appelez-nous	-
018	23001643		Washer (m6)	11	Appelez-nous	-
019	8173901		Screw (m4 X 10)   (Replaces: 23001177)	14	Appelez-nous	-
019	23001621		Screw (m4x12) Lu	11		Immediately	$ 311.03
020	23001178		Microswitch, Activating Plate	11	Appelez-nous	-
021	23001781		Bolt (m4x10)	11	Appelez-nous	-
022	23001708		Washer (5.3)	11	Appelez-nous	-
023	23001181		Retaining Ring (dia. 8)	11	Appelez-nous	-
024	23002279		Bolt (m6x20)	11	Appelez-nous	-
025	23001185		Doorseal, Tension Ring	11	Appelez-nous	-
026	23001186		Doorspring, Tension Spring	11	Appelez-nous	-
