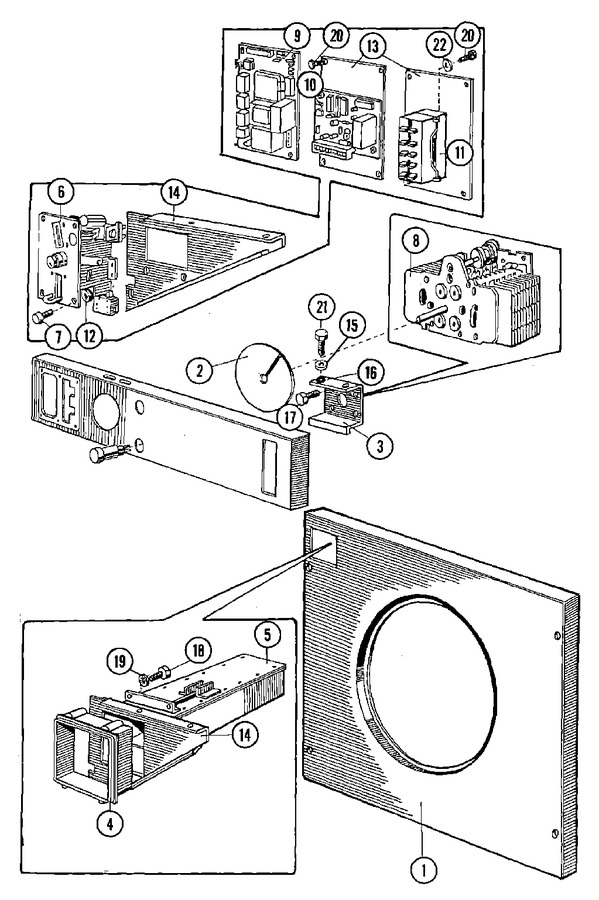

01 - Timer & Coin Assembly


02 - Control Panel (pc/pn)


03 - Main Controls (mc)


04 - Main Controls (pc)


05 - Water Valve & Rear Panel


06 - Door Lock Assembly


07 - Door


08 - Basket & Outer Shell Assembly


09 - Bearings & Trunnion Assembly


10 - Drain & Hose Assembly


11 - Motor & Basket Pulley


12 - Base Frame


13 - Cabinet


14 - Base Frame (series 11)


15 - Cabinet (series 11)


16 - Control Panel (pc Models-series 11)


17 - Timer & Coin Assembly (series 11)


18 - Soap Box & Top Cover Assembly


19 - Door Lock Assembly (series 11)


20 - Drain & Hose Assembly (series 11)


21 - Water Valve & Rear Panel (series 11)


22 - Motor & Basket Pulley (series 11)


23 - Basket & Outer Shell Assembly(series 11)


24 - Door (series 11)


25 - Bearings & Trunnion Assembly (series 11)


26 - Electrical Components (series 11)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001320		Panel, Front (stnls Steel)	10	Appelez-nous	-
002	23001060		Indicator Disc, Timer	10	Appelez-nous	-
003	23001061		Timer, Support	10	Appelez-nous	-
004	23001062		Collar, Coin Vault	10	Appelez-nous	-
005	23001349		Vault, Coin	10	Appelez-nous	-
006	23001063		Meter, Coin (25 Cents-240v)	10	Appelez-nous	-
006	23003445		Coil (220v)	10	Appelez-nous	-
006	23003987		Coin Counter Harn-mc		Appelez-nous	-
007	23001064		Screw, Ornamental (m3 X 10)	10	Appelez-nous	-
008	23001065		Timer (pr 6023 230v)	10			$ 248.09
008	23002204		Motor, Timer (230v-large)	10	Appelez-nous	-
009	23001066		Counter, Coin (w/led Display)	10	Appelez-nous	-
009	23001693		Memory	10	Appelez-nous	-
009	23003987		Coin Counter Harn-mc		Appelez-nous	-
010	W10124350		Not Required Part Or See Note	10	Appelez-nous	-
011	23001068		Relay, Start	10	Appelez-nous	-
012	23001053		Nut (m3)	10	Appelez-nous	-
013	NLA		Mounting Plate, Start Relay	10	Appelez-nous	-
014	23001502		Support, Coin Vault	10			$ 1,466.55
015	23001028		Lockwasher (external Teeth M6)	10	Appelez-nous	-
016	23001027		Washer (dia. 12x6.5x1.6)	10	Appelez-nous	-
017	23001069		Bolt (m4x4)	10	Appelez-nous	-
018	23001070		Screw (m4x10)	10	Appelez-nous	-
019	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
020	23001052		Screw (m3 X 6 Cross Recessed)	10	Appelez-nous	-
021	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
022	23001054		Lockwasher	10	Appelez-nous	-
023	23001038		Conversion Kit (mc To Mn)	10	Appelez-nous	-
023	23002195		Pc-pn Conversion Kit	10	Appelez-nous	-
023	23002333		Pc To Pn Conversion (csa)	10	Appelez-nous	-
023	23002334		Mc To Mn Convers.(csa)	10	Appelez-nous	-
