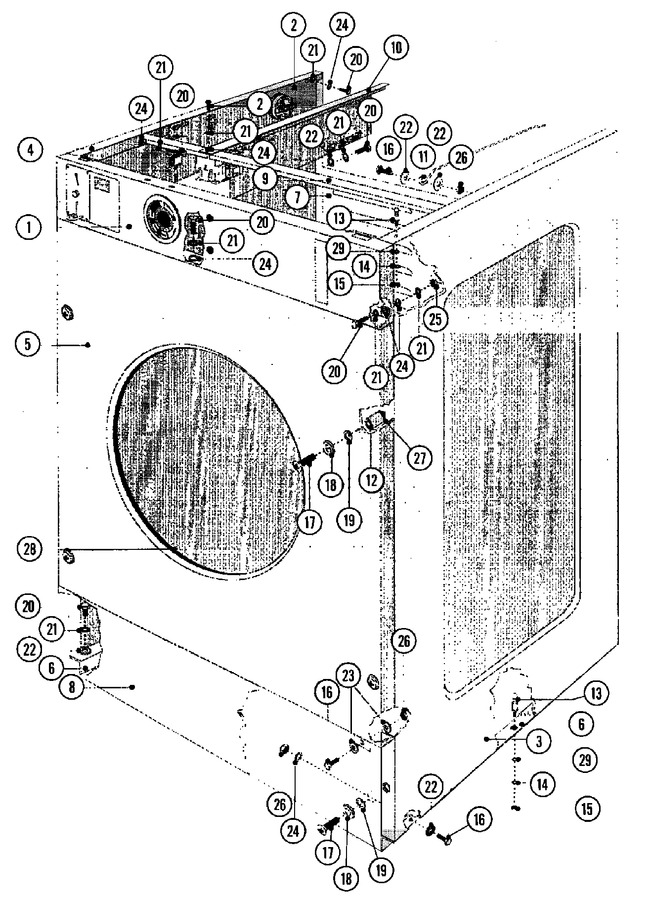

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002848		Panel, Control (push Button)	11	Appelez-nous	-
001	23002849		Panel, Control (coin Meter)	11	Appelez-nous	-
002	23002850		Components, Box Elec.	11	Appelez-nous	-
003	23002851		Panel, Side (rt)	11	Appelez-nous	-
004	23002852		Panel, Side (lt)	11	Appelez-nous	-
005	23001320		Panel, Front (ss)coin	11	Appelez-nous	-
005	23002853		Panel, Front (stnls Steel)	11	Appelez-nous	-
006	23002854		Support, Panel (rt)	11	Appelez-nous	-
006	23002855		Panel, Support (lt)	11	Appelez-nous	-
007	23002856		Plate, Back	11	Appelez-nous	-
008	23002857		Panel, Service (stainless)	11	Appelez-nous	-
009	23002858		Beam, Cross	11	Appelez-nous	-
010	23002859		Holder, Box	11	Appelez-nous	-
011	23001330		Support Rod, Top Panel	11	Appelez-nous	-
012	23002860		Tube, Distance	11	Appelez-nous	-
013	23001332		Pin, Srv	11	Appelez-nous	-
014	23004485		Washer, Lock   (Replaces: 23002465)	11	Appelez-nous	-
015	W10244602		Nut (m5)   (Replaces: 23002466)	11			$ 11.90
016	23002861		Screw (m6x25) Lu	11	Appelez-nous	-
017	23002456		Screw (m6x50)	11	Appelez-nous	-
018	23001337		Washer, Finishing	11	Appelez-nous	-
019	23001338		Washer, Fiber (dia. 15x7x3)	11	Appelez-nous	-
020	23004114		Screw (m6x16)   (Replaces: 23002354)	11	Appelez-nous	-
021	23002756		Washer	11	Appelez-nous	-
022	23001309		Washer (6.4) Lu	11	Appelez-nous	-
023	23001203		Washer (dia. 16 X 8.4 X 1.6)	11	Appelez-nous	-
024	23002282		Washer (6)	11	Appelez-nous	-
025	23002436		Nut (m6)	11	Appelez-nous	-
026	23002471		Nut	11	Appelez-nous	-
027	23001339		Nut, Cage	11	Appelez-nous	-
028	23001088		Trim, Rubber	11	Appelez-nous	-
029	23002862		Washer (5,3)	11	Appelez-nous	-
