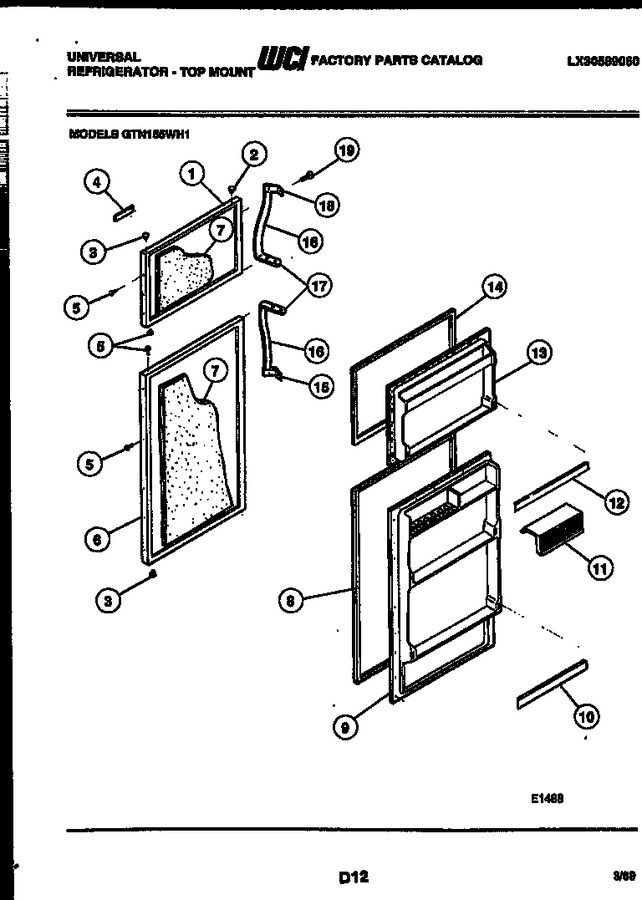

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186221-11		Freezer Door-almond		Appelez-nous	-
2	G169332-11		Button Plug, Almond		Appelez-nous	-
3	G183138		Bearing Hinge (8)		Appelez-nous	-
4	G171161-01		Frame-nameplate		Appelez-nous	-
5	G162977-11		Button Plug-almond		Appelez-nous	-
6	G186234-11		Refrig Door-almond		Appelez-nous	-
7	G89643		Insulation-door (bulk)		Appelez-nous	-
8	G186932-02		Gasket-refr Door		Appelez-nous	-
9	G186648-02		Inner Panel-refr		Appelez-nous	-
10	G164698-46		Rack-refr Door (2)		Appelez-nous	-
11	G161776-44		Butter Door		Appelez-nous	-
12	G164698-27		Rack-freezer Door		Appelez-nous	-
13	G186692-02		Inner Panel-freezer		Appelez-nous	-
14	G186932-03		Gasket, Freezer Door		Appelez-nous	-
15	G179801		Handle End-bottom		Appelez-nous	-
16	G170495-28		Grip-handle (2)		Appelez-nous	-
17	G187329-01		Handle End (2)		Appelez-nous	-
18	G179800		Handle End-top		Appelez-nous	-
19	G185566		Screw		Appelez-nous	-
13A	G162585		Screw		Appelez-nous	-
4A	G153407-12		Tape-frame Mounting (non-illustrated)		Appelez-nous	-
9A	G162585		Screw		Appelez-nous	-
