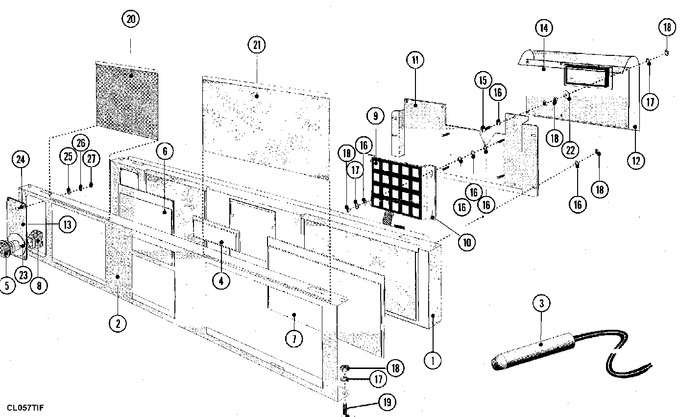

11 - Control Panel


12 - Electrical Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002942		Panel, Control	10	Appelez-nous	-
002	NLA		Facia	10	Appelez-nous	-
003	23001073		Sensor, Temperature	10	Appelez-nous	-
004	23002163		Hole, Inspection	10	Appelez-nous	-
005	23002332		Knob, Central Stop	10	Appelez-nous	-
006	NLA		Plexi, Insert Card Instruction	10	Appelez-nous	-
007	NLA		Plexi, Insert Card Program	10	Appelez-nous	-
008	23002331		Contactor, Central Stop	10	Appelez-nous	-
009	23001692		Keyboard (membrane Switch)	10	Appelez-nous	-
010	23002946		Plate, Fixation Plate	10	Appelez-nous	-
011	23002947		Plate, Electronic Board Fixati	10	Appelez-nous	-
012	NLA		Cover, Plastic	10	Appelez-nous	-
013	NLA		Plate, Insert (manual)	10	Appelez-nous	-
014	23002201		Microprocessor(mkiia-20)	10	Appelez-nous	-
014	23003742		Controller, English, Spanish	10	Appelez-nous	-
014	23003744		Controller, Apl280ns V1.04	10	Appelez-nous	-
015	23002398		Screw (m4x16)	10	Appelez-nous	-
016	23001056		Washer (4.3)	10	Appelez-nous	-
017	23002426		Washer, Lock (m4)	10	Appelez-nous	-
018	23002399		Nut(m4)	10	Appelez-nous	-
019	23001090		Screw (m4 X 8 Pk Stnls Steel)	10	Appelez-nous	-
022	23002951		Washer, Fiber	10	Appelez-nous	-
023	23002330		Label, Central Stop	10	Appelez-nous	-
024	23001064		Ornamental Screw (m3 X 10)	10	Appelez-nous	-
025	23002174		Washer (3.2)	10	Appelez-nous	-
026	23002865		Lock Washer M3	10	Appelez-nous	-
027	23002399		Nut(m4)	10	Appelez-nous	-
