SELECT A DIAGRAM

01 - Cover


02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G187363		Screw		Appelez-nous	-
1	G163061-73		Cover-fan		Appelez-nous	-
2	G162747-22		Knob-damper Control		Appelez-nous	-
3	G162662		Push-nut		Appelez-nous	-
4	G162661		Damper-fan		Appelez-nous	-
5	G174705		Fan Blade		Appelez-nous	-
6	G187363		Screw		Appelez-nous	-
7	G167217		Orifice Ring		Appelez-nous	-
8	G187559		Bushing (2)				$ 48.20
9	G185302		Bracket-front		Appelez-nous	-
10	G168978		Clamp-wiring (non-illustrated)		Appelez-nous	-
10	G167542		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
10	G163290		Cover-evaporator Coil		Appelez-nous	-
11	3203044		Plug-short Test Hole		Appelez-nous	-
12	G162827-05		Plug-decorative		Appelez-nous	-
13	G173301		Motor Fan		Appelez-nous	-
14	G185303		Bracket-rear		Appelez-nous	-
15	G164571		Bracket, Connector		Appelez-nous	-
16	G162585		Screw		Appelez-nous	-
17	G163292		Drain Trough		Appelez-nous	-
18	G163669		Support, Coil Cover (2)		Appelez-nous	-
19	G85642		Tube, Rubber (2)		Appelez-nous	-
20	G174733		Ferrule, Inner		Appelez-nous	-
21	G174734		Ferrule Outer		Appelez-nous	-
22	G174747-08		Button, Plug, Avocado		Appelez-nous	-
22	G174747-10		Plug-button, Coffee		Appelez-nous	-
22	G174747-11		Button-plug, Almond		Appelez-nous	-
22	G174747-01		Button-plug-white		Appelez-nous	-
22	G174747-09		Plug-button, Wheat		Appelez-nous	-
23	G163205		Drain Tube		Appelez-nous	-
24	G167103		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
24	G183714		Hinge-top		Appelez-nous	-
25	G183861		Shim Top Hinge		Appelez-nous	-
26	G161998-01		Cabinet Base		Appelez-nous	-
27	G185713		Leveling Screw (2)		Appelez-nous	-
28	G183073		Anchor Nut (2)		Appelez-nous	-
29	G166912		Plug-hinge Hole		Appelez-nous	-
30	G181020		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
30	G181019		Bracket-bttm Hinge		Appelez-nous	-
31	G163203		Shim-bottom Hinge		Appelez-nous	-
31	G179797		Tapping Plate (2) (non-illustrated)		Appelez-nous	-
32	G166505		Pin-bottom Hinge		Appelez-nous	-
33	G103903		Washer, Nylon				$ 3.10
34	G164355		Washer-5/16 Nylon (2)		Appelez-nous	-
35	G163207		Bracket-center Hinge		Appelez-nous	-
35	G183103		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
36	G142220		Pin		Appelez-nous	-
37	G162364-09		Corner Trim-wheat		Appelez-nous	-
37	G162364-01		Corner Trim-white		Appelez-nous	-
37	G162364-08		Corner Trim-avocado		Appelez-nous	-
37	G162364-10		Corner Trim-coffee		Appelez-nous	-
37	G162364-11		Corner Trim-almond		Appelez-nous	-
38	G183558-09		Hinge Cover-wheat		Appelez-nous	-
38	G183558-10		Hinge Cover Coffee		Appelez-nous	-
38	G183558-11		Hinge Cover-almond		Appelez-nous	-
38	G183558-08		Hinge Cover-avocado		Appelez-nous	-
38	G183558-01		Hinge Cover-white		Appelez-nous	-
*45262	G187599		Plug-freezer Liner (3)		Appelez-nous	-

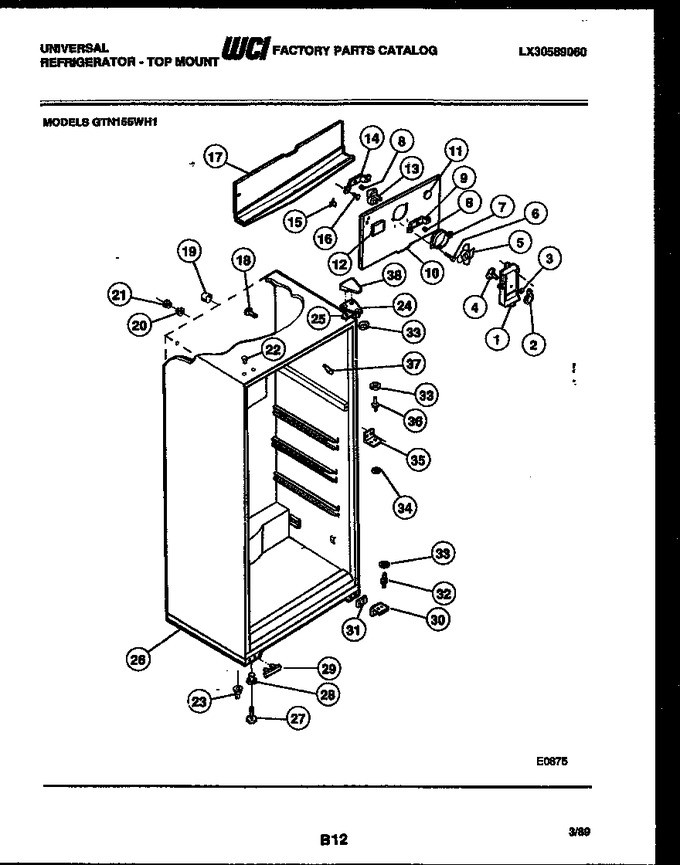

    View Diagram in Separate Window       Print Part List
