SELECT A DIAGRAM

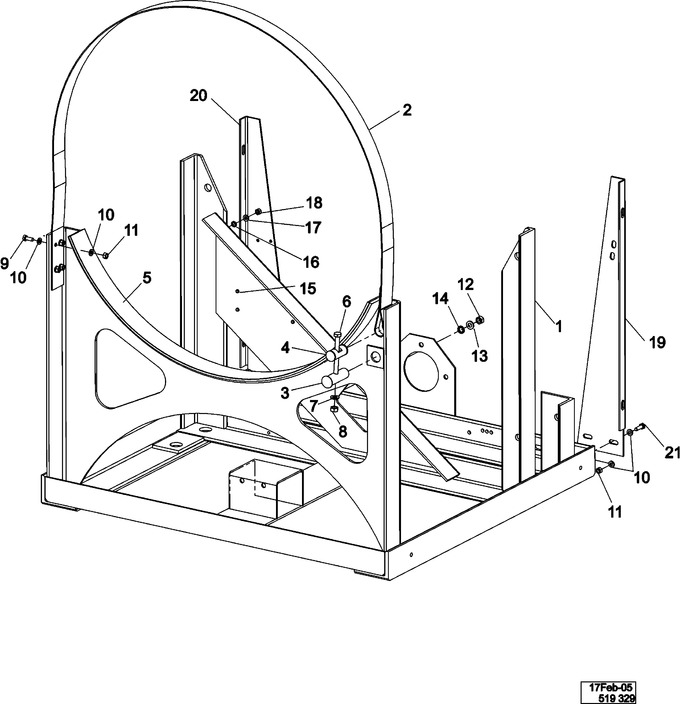

01 - Base Frame


02 - Cabinet (pd)


03 - Top Cover Assembly


04 - Door Lock Assembly


05 - Door


06 - Soap Box, Drain & Hose Assembly


07 - Control Panel (pd)


08 - Coin Vault (pd)


09 - Basket & Outer Shell Assembly


10 - Motor & Basket Pulley


11 - Water Valve & Rear Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004042		Frame Welded	10	Appelez-nous	-
002	23004168		Strape	10	Appelez-nous	-
003	23004169		Lwr Tightener Roller	10	Appelez-nous	-
004	23004170		Uppr Tightener Roller	10	Appelez-nous	-
005	23004267		Belt, Shock Absor 36``	10	Appelez-nous	-
006	NLA		Screw (m8x80)	10	Appelez-nous	-
007	23003769		Washer M8	10	Appelez-nous	-
008	NLA		Nut M8	10	Appelez-nous	-
009	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
010	23003778		Washer 12	10	Appelez-nous	-
011	23003773		Nut M6	10	Appelez-nous	-
012	23002487		Nut (m8)	10	Appelez-nous	-
013	23001608		Washer (m8) Lu	10	Appelez-nous	-
014	23004172		Lock Washer M8 Ext Teeth	10	Appelez-nous	-
015	23004093		Riveting Blind Nut M4	10	Appelez-nous	-
016	23004175		Lock Washer M6 Ext Teeth	10	Appelez-nous	-
017	23002424		Washer	10	Appelez-nous	-
018	23002280		Nut M6	10	Appelez-nous	-
019	23004173		Right Cabinet Reinforce	10	Appelez-nous	-
020	23004174		Left Cabinet Reinforce	10	Appelez-nous	-
021	23002462		Screw (m6 X 20) Lu	10			$ 5.14
