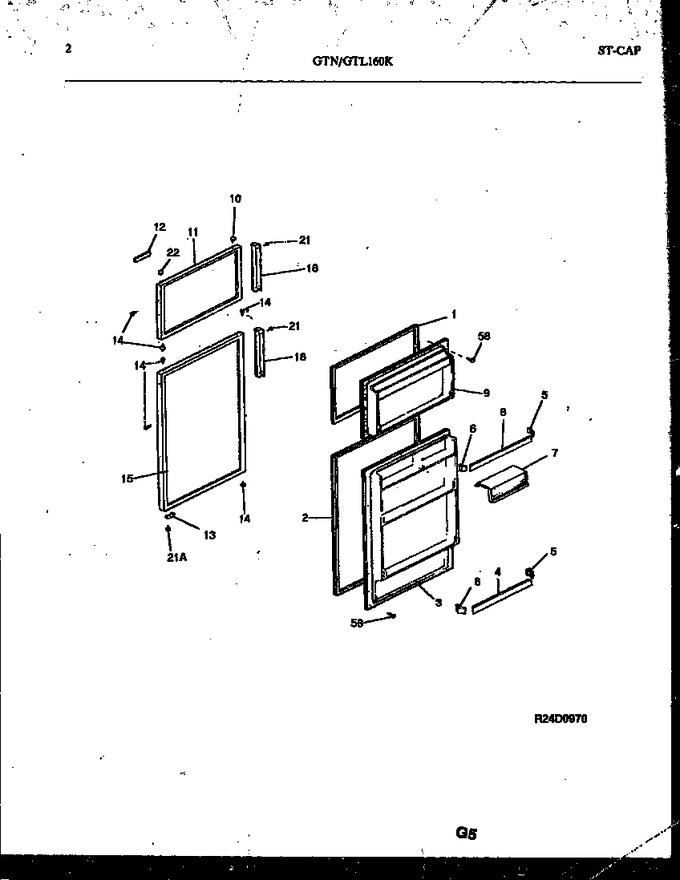

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303017373 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5318359102 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303276973 | Rack-door, (2) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 7 | 5303276909 | Door-dairy |
|
- | |||||
| 8 | 5303276974 | Rack-door |
|
- | |||||
| 9 | 5318358902 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Button Plug, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917009 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303276130 | Frame-nameplate, W/ Tape |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Button Plug, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917012 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5308009875 | Handle-door, Teakwood Vinyl, Refr/frzr, (2) |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *51066 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 6A | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 |
