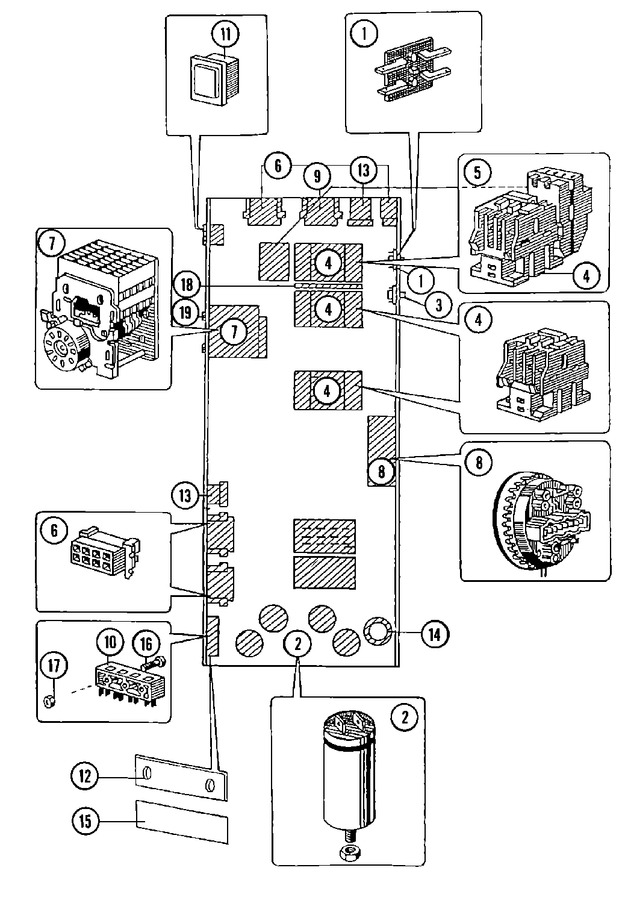

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001094		Bridge, Rectifier	10	Appelez-nous	-
002	23001096		Capacitor (60mf)	10	Appelez-nous	-
002	23001098		Capacitor (130mf)	10	Appelez-nous	-
003	23001099		Socket, Pc Board	10	Appelez-nous	-
004	23001100		Contactor (lc1-d0901 M7)	10	Appelez-nous	-
004	23001101		Contactor (lc1-d1201 M7)	10	Appelez-nous	-
005	23001105		Relay, Thermal Overload (9-13a	10	Appelez-nous	-
005	23001107		Relay, Thermal Overload(12-18a	10	Appelez-nous	-
006	23001109		Housing, Connector (8 Pole)	10		Immediately	$ 2,940.89
007	23001110		Timer, Reversing (pr1840)	10	Appelez-nous	-
008	23001111		Switch, Water Level	10	Appelez-nous	-
008	23002176		Switch, Water Level	10	Appelez-nous	-
009	23001112		Housing, Connector (6 Pole)	10	Appelez-nous	-
010	23002154		Housing, Connector (6 Pole)	10	Appelez-nous	-
011	23001114		Switch, Rocker (prewash)	10	Appelez-nous	-
012	23001115		Paper, Insulation	10	Appelez-nous	-
013	23001116		Housing, Connector (4 Pole)	10	Appelez-nous	-
014	23001117		Ring, Rubber (dia. 25)	10	Appelez-nous	-
015	23001118		Sticker, Liquid Soap	10	Appelez-nous	-
016	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	10			$ 6.27
017	23001055		Nut (m4)	10	Appelez-nous	-
018	23001119		Mech. Interlock, Contactor	10	Appelez-nous	-
019	23001069		Screw (m4 X 4)	10	Appelez-nous	-
020	NLA		Screw (m6 X 25)	10	Appelez-nous	-
021	23001515		Nut (m6)	10	Appelez-nous	-
022	NLA		Washer (m6)	10	Appelez-nous	-
023	23001518		Series 15 - No Longer Needed		Appelez-nous	-
023	NLA		Net Filter	10	Appelez-nous	-
024	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
025	NLA		Sticker	10	Appelez-nous	-
026	NLA		Label, Earth	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
