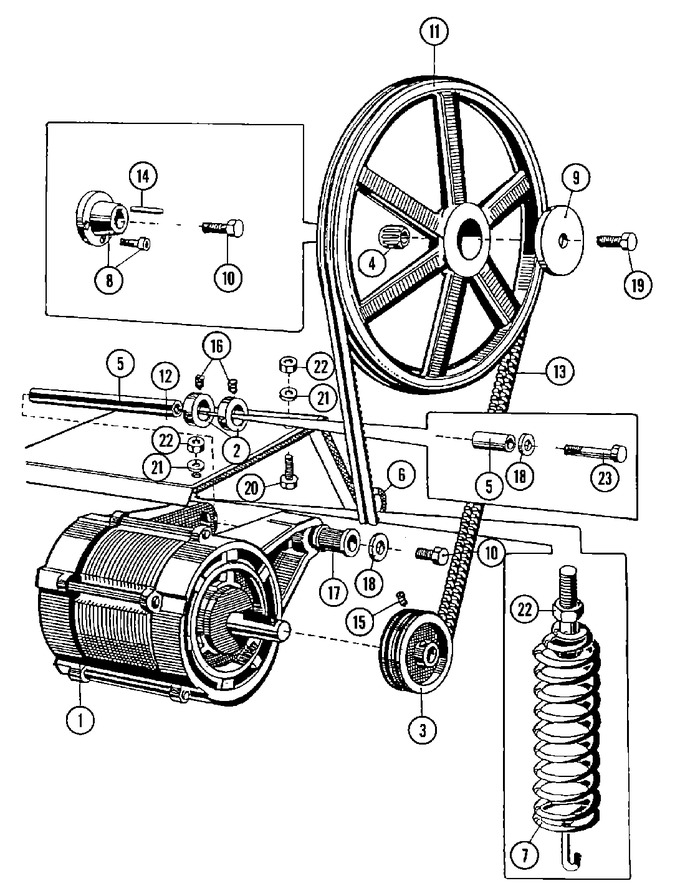

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001269		Motor (single Phase-240/208v)	10	Appelez-nous	-
001	23001270		Motor (three Phase-240v/208v)	10	Appelez-nous	-
001	23001271		Motor (three Phase 240/208v)	10	Appelez-nous	-
002	23001272		Collar, Retainer	10	Appelez-nous	-
003	23001273		V-pulley (dia. 53 X Pz 60hz)	10			$ 88.12
004	23001274		Ring, Tolerance	10	Appelez-nous	-
005	23001275		Rod, Motor Support	10	Appelez-nous	-
005	NLA		Rod, Motor Support	10	Appelez-nous	-
006	23001278		Tensioner, Belt (single Phase)	10	Appelez-nous	-
007	23001279		Belt, Tension Spring	10	Appelez-nous	-
008	23001280		Bushing, Tapered (w/key Slot)	10	Appelez-nous	-
009	23001281		Washer (dia. 90 X 10)	10	Appelez-nous	-
009	23001282		Washer (dia. 37 X 13 X 3)	10			$ 15.36
010	23001283		Bolt (m12 X 35)	10	Appelez-nous	-
011	23001284		Pulley, Basket (dia. 450)	10	Appelez-nous	-
011	23001285		Pulley, Basket (dia. 450)	10	Appelez-nous	-
012	23001286		Shield, Motor	10	Appelez-nous	-
013	23001287		V-belt (xpz X 1950)	10	Appelez-nous	-
014	23001288		Key, Basket Pulley(10 X 8x 60)	10	Appelez-nous	-
015	23001289		Screw, Allen Set (m8 X 10)	10	Appelez-nous	-
016	23001290		Screw, Allen Set (m6 X 6)	10	Appelez-nous	-
017	23001291		Bushing, Rubber Motor Mount	10	Appelez-nous	-
018	23001292		Washer (13)	10	Appelez-nous	-
019	23001293		Bolt (m14 X 50)	10	Appelez-nous	-
020	23001264		Bolt M8x20	10	Appelez-nous	-
021	23001265		Washer (8)	10	Appelez-nous	-
022	23001266		Nut M8	10	Appelez-nous	-
023	23001294		Bolt (m12 X 70)	10	Appelez-nous	-
