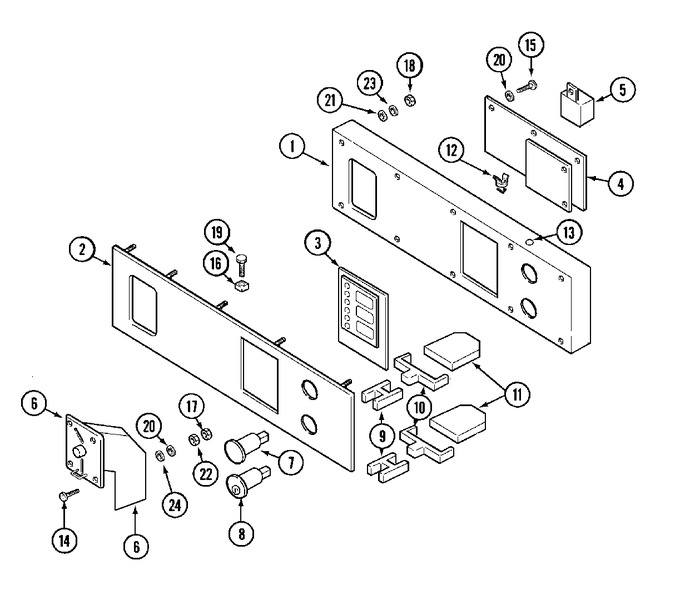

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Panel, Control	10	Appelez-nous	-
002	NLA		Facia, Control Panel (pc)	10	Appelez-nous	-
003	23001526		Plexi, Microprocessor	10			$ 555.21
004	23001525		Microprocessor	10	Appelez-nous	-
005	23003741		Controller, Apl283a V1.07	10	Appelez-nous	-
005	23003742		Controller, English, Spanish	10	Appelez-nous	-
005	23003743		Controller, Apl281ne V1.04	10	Appelez-nous	-
006	23001063		Coin Meter (25 Cents-240v)	10	Appelez-nous	-
007	23001537		Push Button	10	Appelez-nous	-
008	23001538		Key Block	10	Appelez-nous	-
009	NLA		Connection Part	10	Appelez-nous	-
010	23001540		Adapter, Contact Block	10	Appelez-nous	-
011	23001541		Block, Contact (on)	10	Appelez-nous	-
012	23001542		Holder	10	Appelez-nous	-
013	NLA		Label, Earth	10	Appelez-nous	-
014	23001064		Ornamental Screw (m3 X 10)	10	Appelez-nous	-
015	23001544		Bolt (m3x10)	10	Appelez-nous	-
016	NLA		Bolt	10	Appelez-nous	-
017	23001053		Nut (m3)	10	Appelez-nous	-
018	23001055		Nut (m4)	10	Appelez-nous	-
019	23001339		Nut, Cage	10	Appelez-nous	-
020	23002174		Washer (3.2)	10	Appelez-nous	-
021	23001545		Washer	10	Appelez-nous	-
022	23001054		Locking Washer	10	Appelez-nous	-
023	23001013		Lock Washer External Teeth M4	10	Appelez-nous	-
024	23001610		Washer (4.3)	10	Appelez-nous	-
025	NLA		Insert Plate, Manual Operation	10	Appelez-nous	-
026	23002330		Label, Central Stop	10	Appelez-nous	-
027	23002331		Contactor, Central Stop	10	Appelez-nous	-
028	23002332		Knob, Central Stop	10	Appelez-nous	-
029	23001541		Block, Contact (on)	10	Appelez-nous	-
