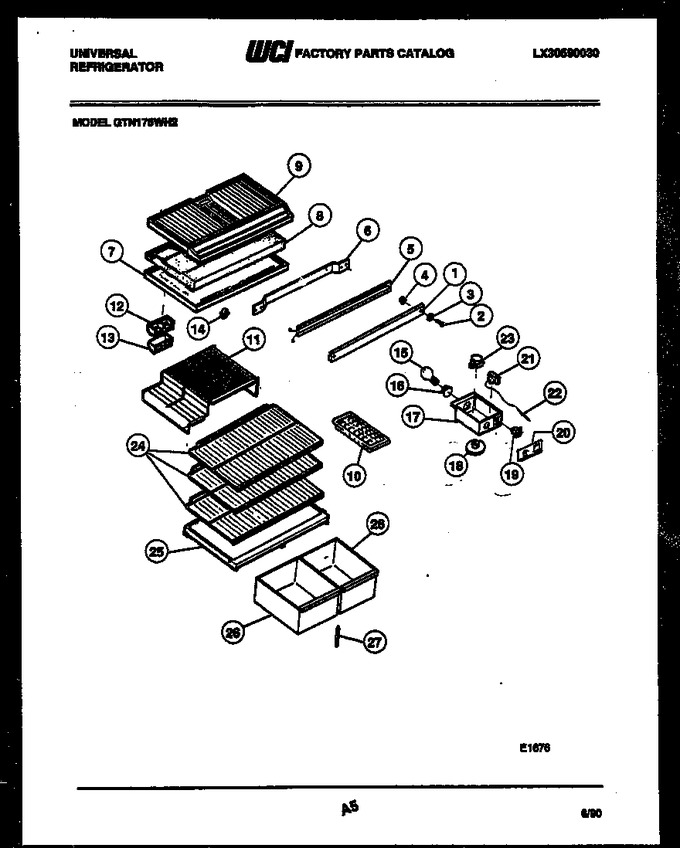

01 - Cabinet Parts


02 - Shelves And Supports


03 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200465		Mullion, White		Appelez-nous	-
1	3916135		Mullion-avocado		Appelez-nous	-
1	3916132		Mullion, Wheat		Appelez-nous	-
1	3916133		Mullion, Coffee		Appelez-nous	-
1	5303916134		Mullion, Almond		Appelez-nous	-
2	5308012258		Screw				$ 2.25
3	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
4	5303200464		Spacer, Mullion (2)		Appelez-nous	-
5	5308017408		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	5303016378		Top Panel-refr		Appelez-nous	-
8	5308009750		Divider, Styrofoam		Appelez-nous	-
9	5303001537		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Ice Tray (2)		Appelez-nous	-
11	3001520		Shelf-freezer		Appelez-nous	-
12	5308000071		Air Deflector		Appelez-nous	-
13	5303001546		Cover, Deflector		Appelez-nous	-
14	5309918806		Light Switch			Immediately	$ 21.97
15	5303001179		Light Bulb		Appelez-nous	-
16	5308000129		Light Socket				$ 62.16
17	3001454		Control Box		Appelez-nous	-
18	5317478101		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	5303001339		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	5308037932		Sleeve-plastic Tube		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303001521		Shelf-refrigerator (3)		Appelez-nous	-
25	5349001601		Cover-pan		Appelez-nous	-
26	5303001522		Pan-storage (2)		Appelez-nous	-
27	5303205987		Support-pan Cover Adj				$ 48.41
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
8A	3001383		Wiring Harn-divider (non-illustrated)		Appelez-nous	-
