SELECT A DIAGRAM

01 - Soap Box & Top Cover Assembly


02 - Timer & Coin Assembly


03 - Control Panel (pc & Pn Models)


04 - Door Lock Assembly


05 - Door


06 - Basket & Outer Shell Assembly


07 - Bearings & Trunnion Assembly


08 - Drain & Hose Assembly


09 - Motor & Basket Pulley


10 - Base Frame


11 - Cabinet


12 - Water Valve & Rear Panel


13 - Base Frame (series 11)


14 - Cabinet (series 11)


15 - Timer & Coin Assembly (series 11)


16 - Soap Box & Top Cover Assembly(series 11)


17 - Door Lock Assembly (series 11)


18 - Drain & Hose Assembly (series 11)


19 - Water Valve & Rear Panel (series 11)


20 - Motor & Basket Pulley (series 11)


21 - Basket & Outer Shell Assembly(series 11)


22 - Door (series 11)


23 - Bearings & Trunnion Assembly (series 11)


24 - Electrical Components (series 11)


25 - Control Panel (pn Models Series 11)

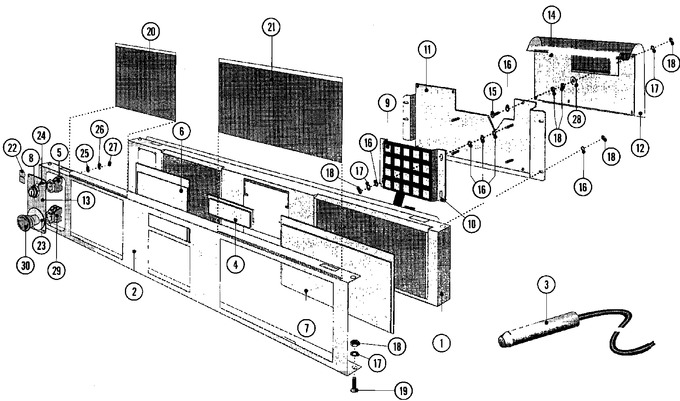

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002942		Panel, Control	11	Appelez-nous	-
002	NLA		Fascia	11	Appelez-nous	-
003	23001073		Sensor, Temperature	11	Appelez-nous	-
004	23002163		Hole, Inspection	11	Appelez-nous	-
005	23001076		Contract Block (no)	11	Appelez-nous	-
006	NLA		Plexi, Insert Card Instruction	11	Appelez-nous	-
007	NLA		Plexi, Insert Card Program	11	Appelez-nous	-
008	23001082		Block, Programming Key	11	Appelez-nous	-
009	23001692		Keyboard (membrane Switch)	11	Appelez-nous	-
010	23002946		Plate, Fixation Plate	11	Appelez-nous	-
011	23002947		Plate, Electronic Board Fixati	11	Appelez-nous	-
012	NLA		Cover, Plastic	11	Appelez-nous	-
013	NLA		Plate, Insert (manual)	11	Appelez-nous	-
014	23002949		Programmer	11	Appelez-nous	-
015	23002398		Screw (m4x16)	11	Appelez-nous	-
016	23001056		Washer (4.3)	11	Appelez-nous	-
017	23002426		Washer, Lock (m4)	11	Appelez-nous	-
018	23002399		Nut(m4)	11	Appelez-nous	-
019	23001090		Screw (m4 X 8 Pk Stnls Steel)	11	Appelez-nous	-
022	NLA		Stickers, Programming Key	11	Appelez-nous	-
023	23002330		Label, Central Stop	11	Appelez-nous	-
024	23001064		Ornamental Screw (m3 X 10)	11	Appelez-nous	-
025	23002174		Washer (3.2)	11	Appelez-nous	-
026	23002865		Lock Washer M3	11	Appelez-nous	-
027	23002399		Nut(m4)	11	Appelez-nous	-
028	23002951		Washer, Fiber	11	Appelez-nous	-
029	23002331		Contactor, Central Stop	11	Appelez-nous	-
030	23002332		Knob, Central Stop	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
