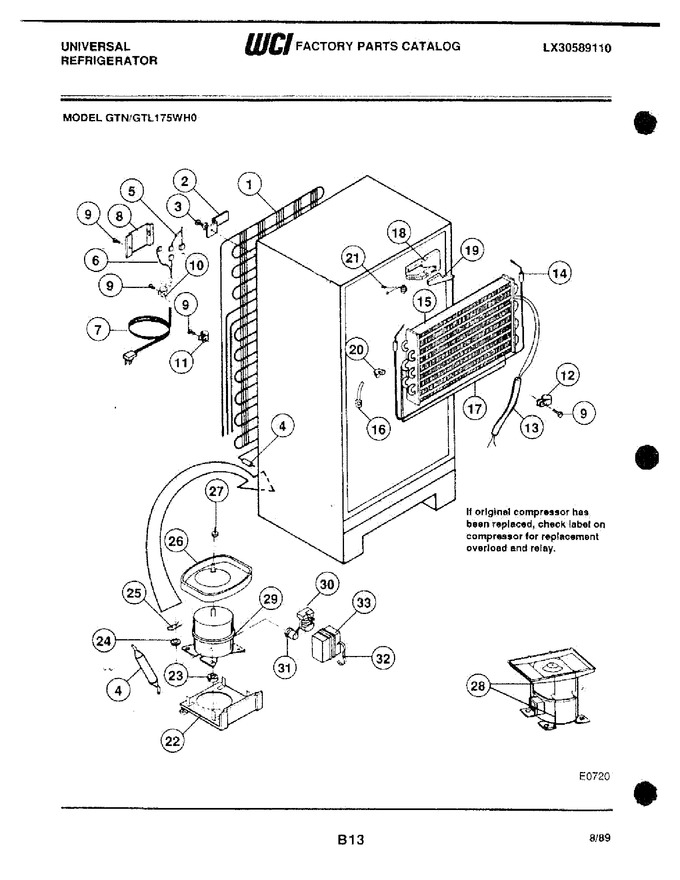

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178225		Condenser		Appelez-nous	-
2	G164637		Bracket, Condenser Mounting		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	3007351		Drier-filter		Appelez-nous	-
5	G174818		Wiring Harness-control		Appelez-nous	-
6	G166062-01		Wiring, Harness, Compressor		Appelez-nous	-
7	G162549-01		Service Cord		Appelez-nous	-
8	G183584		Cover, Wiring		Appelez-nous	-
9	G187009		Screw		Appelez-nous	-
10	3001199		Clamp-cable (3)		Appelez-nous	-
11	G168978		Clamp-harness (2)		Appelez-nous	-
12	G88088		Clamp-exchanger		Appelez-nous	-
13	08000728		Heat Exchanger		Appelez-nous	-
14	08009754		Heater-defrost		Appelez-nous	-
15	08009756		Evaporator Coil		Appelez-nous	-
16	08000110		Strap-evap/heater (2)		Appelez-nous	-
17	G166511-02		Insulation-evaporator		Appelez-nous	-
18	3001360		Insulation Block Rs		Appelez-nous	-
19	G185276		Insulation Plug Rs		Appelez-nous	-
20	G188375		Insulation Block Ls		Appelez-nous	-
21	G162690-01		Thermostat, Defrost		Appelez-nous	-
22	G184599		Plate-compr Mtg		Appelez-nous	-
23	08008778		Grommet (4)		Appelez-nous	-
24	08003633		Washer (4)		Appelez-nous	-
25	G163204		Clip		Appelez-nous	-
26	G184715		Pan-drain		Appelez-nous	-
27	G164958		Lock Nut-pan		Appelez-nous	-
28	3916001		Pan Retainer Kit-svce		Appelez-nous	-
29	3916020		Compressor With Electricals-service		Appelez-nous	-
30	3007171		Relay		Appelez-nous	-
31	3007416		Overload		Appelez-nous	-
32	3006412		Cover Strap		Appelez-nous	-
33	3006411		Terminal Cover		Appelez-nous	-
	G169873		Sound Tape-pan (non-illustrated)		Appelez-nous	-
	G189437		Spacer-tube (3) (non-illustrated)		Appelez-nous	-
	G189383		Hot Tube Repair Kit (non-illustrated)		Appelez-nous	-
	G164820		Washer		Appelez-nous	-
	3017762		Clip-overload (non-illustrated)		Appelez-nous	-
