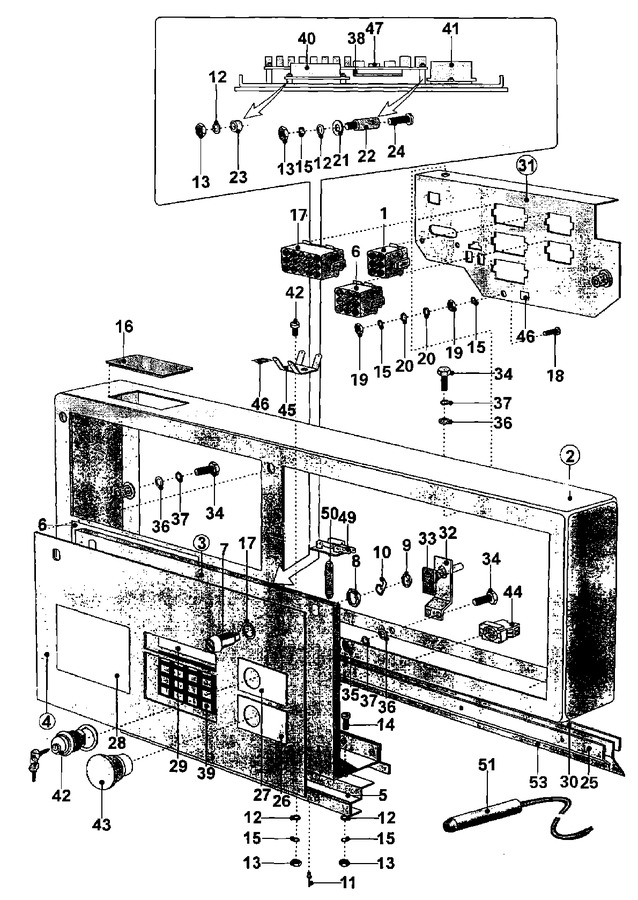

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23001723 | Board, Terminal (amp 6 Poles) | 10 |
|
- | ||||
| 002 | 23002763 | Panel, Front | 10 |
|
- | ||||
| 003 | 23002764 | Cover, Top | 10 |
|
- | ||||
| 004 | 23002765 | Plate, Index | 10 |
|
- | ||||
| 005 | 23002766 | Support, Plate | 10 |
|
- | ||||
| 006 | 23001722 | Board, Terminal (amp 9 Poles) | 10 |
|
- | ||||
| 007 | 23001583 | Device, Locking | 10 |
|
- | ||||
| 008 | 23001008 | Lock Nut (large) | 10 |
|
$ 186.62 | ||||
| 009 | 23001011 | Nut | 10 |
|
- | ||||
| 010 | 23002451 | Pawl | 10 |
|
- | ||||
| 011 | NLA | Rivet/crank (4 X 7.5) | 10 |
|
- | ||||
| 012 | 23001610 | Washer (4.3) | 10 |
|
- | ||||
| 013 | W10244602 | Nut (m4) Lu (Replaces: 23002452) | 10 |
|
$ 11.90 | ||||
| 014 | NLA | Cover | 10 |
|
- | ||||
| 015 | 23002400 | Washer | 10 |
|
- | ||||
| 016 | NLA | Cover | 10 |
|
- | ||||
| 017 | 23001721 | Board, Terminal (amp 15 Poles) | 10 |
|
- | ||||
| 018 | 23002778 | Screw (m4 X 12) | 10 |
|
- | ||||
| 019 | NLA | Nut (m4) | 10 |
|
- | ||||
| 020 | 23002725 | Washer (3) | 10 |
|
- | ||||
| 021 | NLA | Insulation (washer) | 10 |
|
- | ||||
| 022 | NLA | Insulation (board Support) | 10 |
|
- | ||||
| 023 | 23001058 | Spacer | 10 |
|
- | ||||
| 024 | 23002769 | Screw (m4 X 10) | 10 |
|
- | ||||
| 025 | NLA | Bar | 10 |
|
- | ||||
| 026 | NLA | Plate (emergency Stop) | 10 |
|
- | ||||
| 027 | NLA | Plate (hoppers-pumps) | 10 |
|
- | ||||
| 028 | 23002772 | Plate (program) | 10 |
|
- | ||||
| 029 | 23002163 | Hole, Inspection | 10 |
|
- | ||||
| 030 | NLA | Strip | 10 |
|
- | ||||
| 031 | 23002773 | Bracket, Terminal Board | 10 |
|
- | ||||
| 032 | 23002774 | Holder, Vibration Switch | 10 |
|
- | ||||
| 033 | 23002775 | Switch, Vibration | 10 |
|
- | ||||
| 034 | NLA | Screw (m6x10) | 10 |
|
- | ||||
| 035 | 23002651 | Nut (m6) | 10 |
|
- | ||||
| 036 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 037 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 038 | 23002201 | Microprocessor(mkiia-20) | 10 |
|
- | ||||
| 039 | 23001692 | Keyboard (membrane Switch) | 10 |
|
- | ||||
| 040 | 23001718 | Board, Additional(soap Board) | 10 |
|
- | ||||
| 043 | 23002331 | Emergency Stop (Replaces: 23001078) | 10 |
|
- | ||||
| 044 | 23002331 | Emergency Bloc (w/lamp) (Replaces: 23001075) | 10 |
|
- | ||||
| 045 | NLA | Contact (6.3 Type 140609-0) | 10 |
|
- | ||||
| 046 | NLA | Label, Earth | 10 |
|
- | ||||
| 047 | 23003744 | Controller, Apl280ns V1.04 | 10 |
|
- | ||||
| 047 | 23003745 | Controller, Apl280ne V1.04 | 10 |
|
- | ||||
| 048 | 23002025 | Connection, Electrical | 10 |
|
- | ||||
| 049 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 050 | 23001099 | Pc Board Socket | 10 |
|
- | ||||
| 051 | 23001073 | Sensor, Temperature | 10 |
|
- | ||||
| 052 | 23001609 | Screw (m4x12) | 10 |
|
- | ||||
| 053 | 23002782 | Top Cuff | 10 |
|
- |
