SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Side Panels


04 - Tub


05 - Drum


06 - Trunnion 100-125lb


07 - Motor


08 - Idler


09 - Door


10 - Door Lock


11 - Soap Hopper


12 - Filling System


13 - Valves


14 - Control Panel


15 - Rear Panel


16 - Electrical Components


17 - Drain System 100-125lb

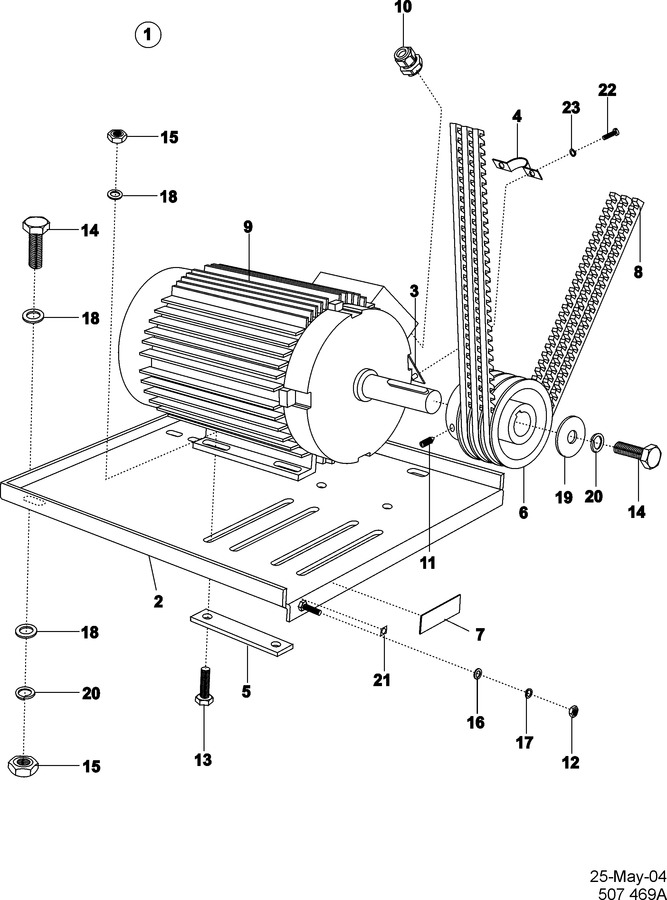

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23003943		Drive Board, Complete	10	Appelez-nous	-
002	23004428		Motor Bracket Comp 100	10	Appelez-nous	-
002	23004429		Motor Bracket Comp 125	10	Appelez-nous	-
003	23004430		Cable Holder Comp 80lb	10	Appelez-nous	-
003	23004431		Cable Holder Comp 100-125lb	10			$ 207.88
004	23004021		Cable Socket	10	Appelez-nous	-
005	23004432		Motor Washer	10	Appelez-nous	-
006	23004433		Motor Pulley 80lb	10	Appelez-nous	-
006	23004434		Motor Pulley 100-125lb	10	Appelez-nous	-
007	23003944		Label, Motor	10	Appelez-nous	-
008	23004435		Motor Belt 80lb	10	Appelez-nous	-
008	23004436		Motor Belt 100-125lb	10	Appelez-nous	-
009	23004088		Motor 240v 3phase	10	Appelez-nous	-
009	23004090		Motor 240v 3phase	10	Appelez-nous	-
010	23002211		Swivel, Cable	10	Appelez-nous	-
011	23001658		Screw (m6x10)	10			$ 18.77
012	23002280		Nut M6	10	Appelez-nous	-
013	23004207		Bolt M12 X 50	10	Appelez-nous	-
014	23002661		Screw (m12x35)	10	Appelez-nous	-
015	23003676		Nut M12	10	Appelez-nous	-
016	23002424		Washer	10	Appelez-nous	-
017	23002425		Washer, Lock	10			$ 473.30
018	23001292		Washer (13)	10	Appelez-nous	-
019	23004437		Washer 14	10	Appelez-nous	-
020	23002658		Washer (12)	10	Appelez-nous	-
021	23002505		Plate, Earth	10	Appelez-nous	-
022	23002423		Screw (m4 X 10)	10	Appelez-nous	-
023	23004347		Washer 4	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
