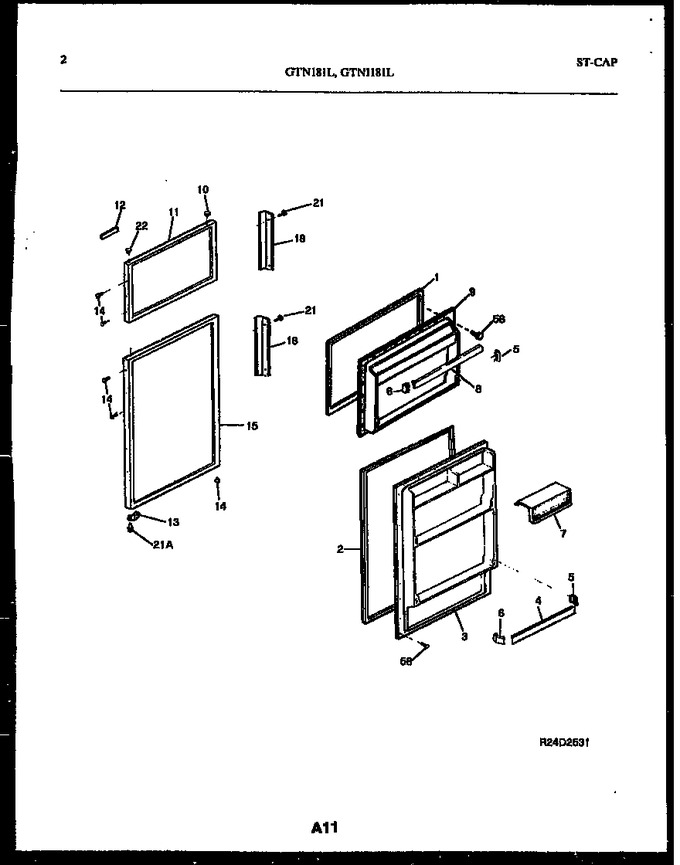

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, Magnetic, White |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 5318350701 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303273198 | Rack-door, Refr, (2) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 | |||||
| 7 | 5316177640 | Door-dairy |
|
- | |||||
| 8 | 5303273197 | Rack-door, Frzr |
|
- | |||||
| 9 | 5318350601 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916395 | Panel-frzr Door, Almond |
|
- | |||||
| 11 | 3916392 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5303276130 | Frame-nameplate, W/ Tape |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916382 | Panel-refr Door, Almond |
|
- | |||||
| 15 | 3916379 | Panel-refr Door, White |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *71908 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- |
