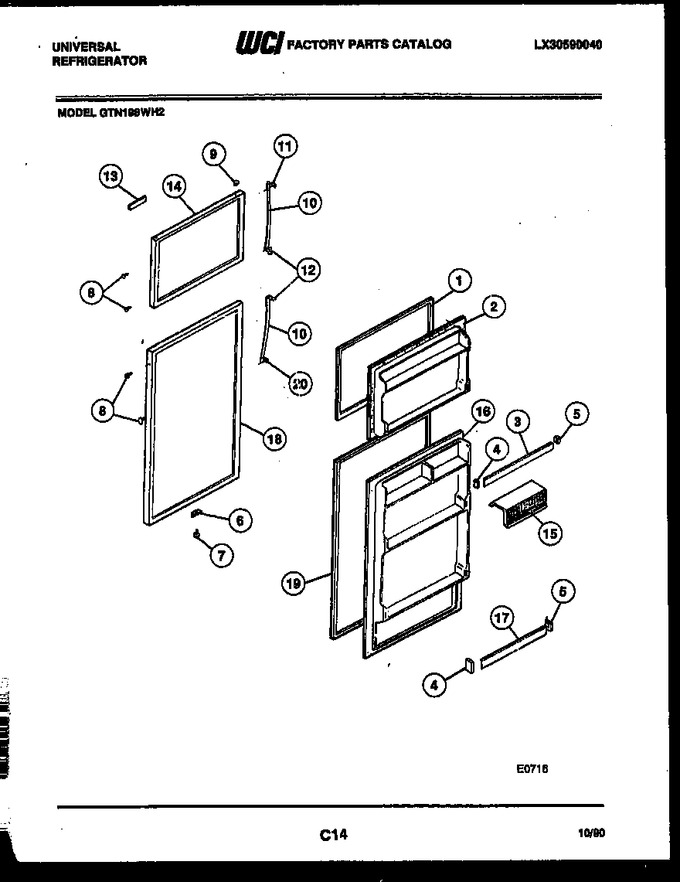

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-freezer |
|
- | |||||
| 2 | 3001485 | Panel-inner |
|
- | |||||
| 3 | 5303001484 | Rack-door (2) |
|
- | |||||
| 4 | 5303001411 | Support Lh (4) |
|
- | |||||
| 5 | 5303001410 | Support Rh (4) |
|
- | |||||
| 6 | 5308000255 | Door Stop (2) |
|
$ 42.20 | |||||
| 7 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 8 | 5308000181 | Button-almond (8) |
|
- | |||||
| 9 | 5303001308 | Button-almond |
|
- | |||||
| 10 | 5317049529 | Grip-handle (2) |
|
- | |||||
| 11 | 5303001297 | End Cap-top |
|
$ 70.22 | |||||
| 12 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 13 | 3001025 | Frame-namplate |
|
- | |||||
| 14 | 5317869011 | Panel-outer Frzr (almd) |
|
- | |||||
| 15 | 5303001415 | Dairy Door (2) |
|
- | |||||
| 16 | 5318539701 | Panel-inner |
|
- | |||||
| 17 | 5303001418 | Rack-door (2) |
|
- | |||||
| 18 | 5317869411 | Panel-outer Refr (almd) |
|
- | |||||
| 19 | 5308015544 | Gasket-refr Door |
|
- | |||||
| 20 | 5303001295 | Handle - End Bottom |
|
- | |||||
| *36584 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 12A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 14A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 16A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 18A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 2A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 |
