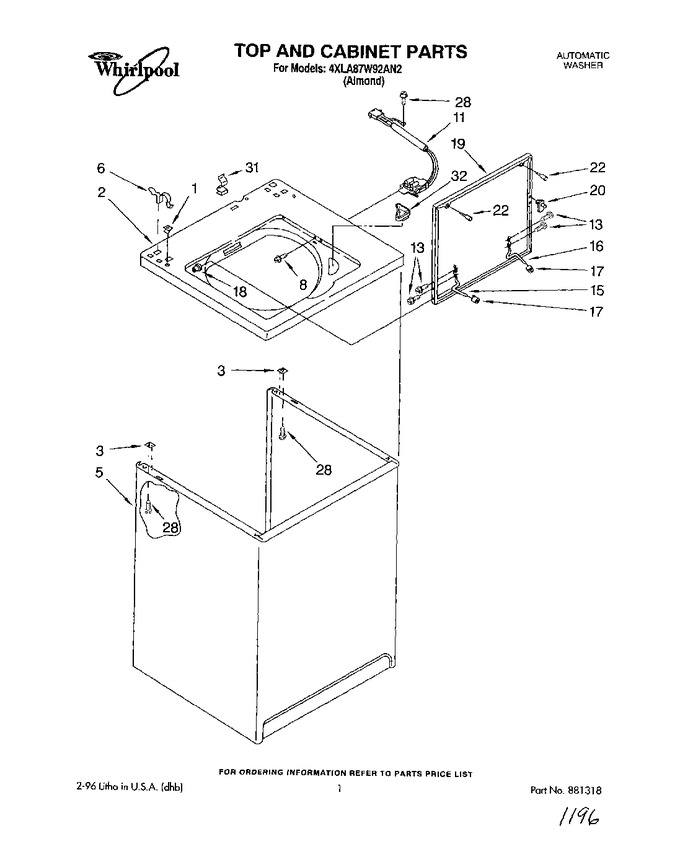

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.65
2	3358201		Top (for Almond Model)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
5	63425		Cabinet (for Almond Model)		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 6.98
11	285671		Switch, Lid   (Replaces: 3352629)			Immediately	$ 64.13
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 26.60
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	3358772		Lid (for Almond Model)		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
22	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
28	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 384435)			Immediately	$ 7.07
31	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
32	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 10.88

    View Diagram in Separate Window       Print Part List
